Product Summary

The AT83C23OK203-RATUM Smart Card is increasingly being used for Payments, Home-Banking, Access Control, Internet Security, PKItokens, Health Care, Loyalty, etc. The AT83C23OK203-RATUM is a ready to use precertified smart card reader interface, that can be implemented into USB hosts. The AT83C23OK203-RATUM facilitates hardware integrators by reducing time-to-market and offers a unique opportunity to quickly and easily include smart card reader functionality in systems like PCs, Notebooks, Keyboards, Smart Card based Dongles, Monitors, Mice, PDAs, Thin Clients, Biometric devices etc. The already existing certifications and compliances guarantee a fast and easy certification process.

Parametrics

AT83C23OK203-RATUM absolute maximum ratings: (1)Ambiant Temperature Under Bias : -25°C to 85°C; (2)Storage Temperature : -65°C to + 150°C; (3)Voltage on VCC to VSS : -0.5 V to + 6.0V; (4)Voltage on Any Pin to VSS: -0.5 V to VCC + 0.5 V; (5)Power Dissipation: 1 W.

Features

AT83C23OK203-RATUM features: (1)Transmission Speed: USB: 12 MBit/sec; (2)Customer Specific USB-descriptors; (3)Serial; (4)High Performance Smart Card Interface; (5)Supports 5V, 3V and 1.8V Smart Cards; (6)Supply Current 60 mA to Power the Smart Card; (7)Smart Card Movement Detection with Auto Power-off; (8)Automatic Detection of Smart Card Type; (9)Short Circuit and Thermal Protection; (10)8-pin Handling (C4/C8 Supported); (11)Fast and Easy Certification Process; (12)Supports LED Status Indicator (Green: ready; Red: busy).

Diagrams

AT83C23OK203-RATUM pin connection

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity

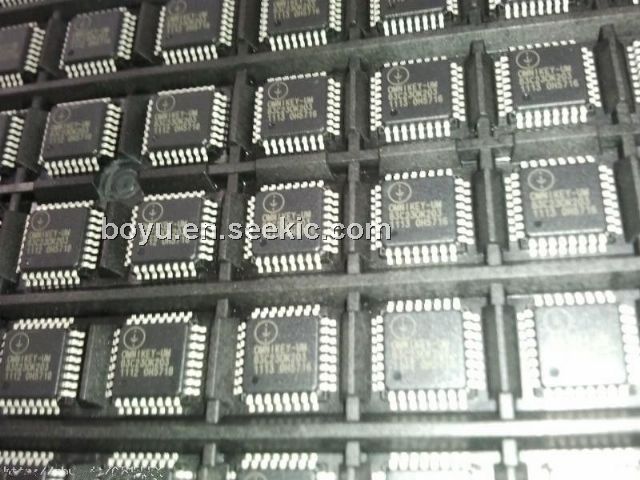

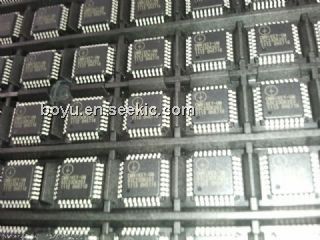

AT83C23OK203-RATUM
AT83C23OK203-RATUM

Atmel

Interface - Specialized Omnikey 32K ROMus

Data Sheet

Negotiable
