Product Summary
he HIP9011AB is an engine knock signal processor. The HIP9011AB is used to provide a method of detecting premature detonation often referred to as “Knock or Ping” in internal combustion engines. Applications are (1)Engine Knock Detector Processor; (2)Analog Signal Processing Where Controllable Filter Characteristics are Required.
Parametrics
HIP9011AB absolute maximum ratings: (1)DC Logic Supply, VDD: -0.5V to 7.0V; (2)Output Voltage, VO: -0.5V to 7.0V; (3)Input Voltage, VIN: 7V Max.
Features
HIP9011AB features: (1)Two Sensor Inputs; (2)Microprocessor Programmable; (3)Accurate and Stable Filter Elements; (4)Digitally Programmable Gain; (5)Digitally Programmable Time Constants; (6)Digitally Programmable Filter Characteristics; (7)On-Chip Crystal Oscillator; (8)Programmable Frequency Divider; (9)External Clock Frequencies up to 24MHz - 4, 5, 6, 8, 10, 12, 16, 20, and 24MHz; (10)Operating Temperature Range -40oC to 125oC.

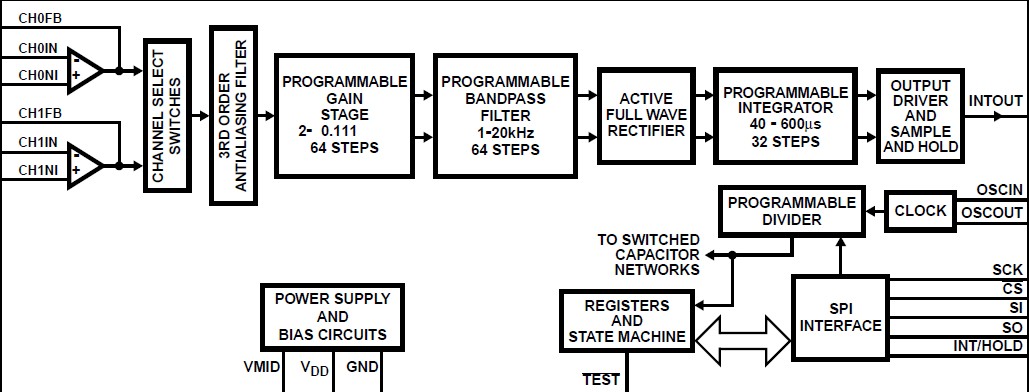

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 HIP9011AB |
|
IC SENSOR ENGINE KNOCK 20-SOIC |
Data Sheet |
Negotiable |
|
||||||||
|
HIP9011ABT |
|
IC SENSOR ENGINE KNOCK 20-SOIC |
Data Sheet |
Negotiable |
|
||||||||
 |
HIP9011ABZ |
Intersil |
Interface - Specialized W/ANNEAL KNOCK SENSOR 20 TUBES |
Data Sheet |
|
|
||||||||
|
HIP9011ABZT |
Intersil |
Interface - Specialized W/ANNEAL KNOCK SENSOR TAPE |
Data Sheet |
|
|
||||||||
