Product Summary

The fan2012mpx is a high-efficiency, low-noise synchronous PWM current mode DC-DC converter, designed for low voltage applications. A current mode control loop with a fast transient response ensures excellent line and load regulation. The fixed 1.3MHz switching frequency enables the user to choose a small, inexpensive external inductor and capacitor. Filtering is also easily accomplished with very small components. Protection features of the fan2012mpx include input under-voltage lockout, short circuit protection and thermal shutdown. Soft-start limits in-rush current during start-up conditions. Applications are (1)Hard Disk Drive; (2)Set Top Box; (3)Point of Load Power; (4)Notebook Computers; (5)Communications Equipment.

Parametrics

fan2012mpx absolute maximum ratings: (1)V IN: -0.3 to 7 V; (2)PV IN and any other pin: -0.3 to V IN V; (3)Thermal Resistance-Junction to Tab ( θ JC ), 3mmx3mm 6-lead MLP: 8 °C/W; (4)Lead Soldering Temperature (10 seconds): 260 °C; (5)Storage Temperature: -65 to 150 °C; (6)Junction Temperature: -40 to 150 °C; (7)Electrostatic Discharge (ESD)Protection Level (Note 3)HBM: 4 kV.

Features

fan2012mpx features: (1)95% Efficiency, Synchronous Operation; (2)Adjustable Output Voltage from 0.8V to V IN; (3)4.5V to 5.5V Input Voltage Range; (4)Up to 1.5A Output Current; (5)Fixed Frequency 1.3 MHz PWM Operation; (6)100% Duty Cycle Low Dropout Operation; (7)Soft Start; (8)Excellent Load Transient Response; (9)3x3mm 6-lead MLP Package.

Diagrams

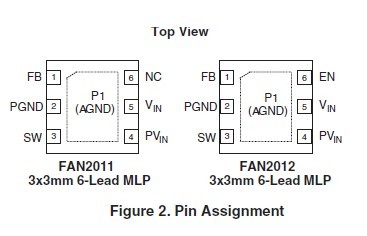

fan2012mpx pin connection

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
FAN2012MPX
FAN2012MPX
Fairchild Semiconductor
DC/DC Switching Converters HE step-down DC/DC converter
Data Sheet
0-1: $0.82
1-25: $0.71
25-100: $0.66
100-250: $0.57
FAN2012MPX_Q
FAN2012MPX_Q
Fairchild Semiconductor
DC/DC Switching Converters HE step-down DC/DC converter
Data Sheet
Negotiable
