Product Summary
The cat24c01bu-te13 is a 1K-bit Serial CMOS EEPROM internally organized as 128 words of 8 bits each. Catalysts advanced CMOS technology substantially reduces device power requirements. The cat24c01bu-te13 features a 4-byte page write buffer. The cat24c01bu-te13 operates via a 2- wire serial interface and is available in 8-pin DIP, 8-pin SOIC, 8-pin TSSOP or 8-pin MSOP.
Parametrics
cat24c01bu-te13 absolute maximum ratings: (1)Temperature Under Bias : –55°C to +125°C; (2)Storage Temperature : –65°C to +150°C; (3)Voltage on Any Pin with Respect to Ground(1): –2.0V to +VCC + 2.0V; (4)VCC with Respect to Ground : –2.0V to +7.0V; (5)Package Power Dissipation Capability (Ta = 25°C): 1.0W; (6)Lead Soldering Temperature (10 secs): 300°C; (7)Output Short Circuit Current(2): 100mA.
Features
cat24c01bu-te13 features: (1)2-Wire Serial Interface; (2)1.8 to 6.0Volt Operation; (3)Low Power CMOS Technology; (4)4-Byte Page Write Buffer; (5)Self-Timed Write Cycle with Auto-Clear; (6)1,000,000 Program/Erase Cycles; (7)100 Year Data Retention; (8)8-pin DIP, 8-pin SOIC, 8 pin TSSOP or 8-pin MSOP; (9)Commercial, Industrial and Automotive Temperature Ranges.

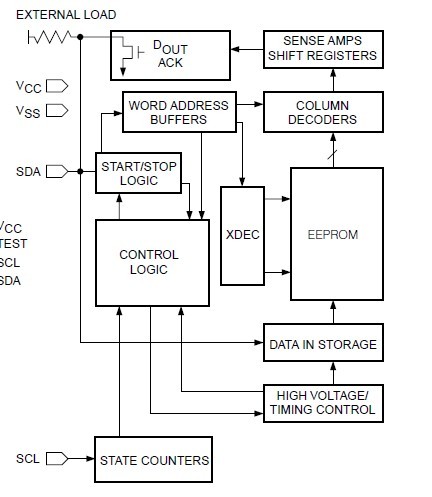

Diagrams
