Product Summary
The BC847C-1G is a SOT23 NPN silicon planar general purpose transistor.
Parametrics
BC847C-1G absolute maximum ratings: (1)Collector-Base Voltage: 50 V; (2)Collector-Emitter Voltage: 50 V; (3)Collector-Emitter Voltage: 45 V; (4)Emitter-Base Voltage: 6 V; (5)Continuous Collector Current: 100 mA; (6)Peak Collector Current: 200 mA; (7)Peak Base Current: 200 mA; (8)Peak Emitter Current: 200 mA; (9)Power Dissipation at Tamb =25°C: 330 mW; (10)Operating and Storage Temperature Range: -55 to +150 °C.

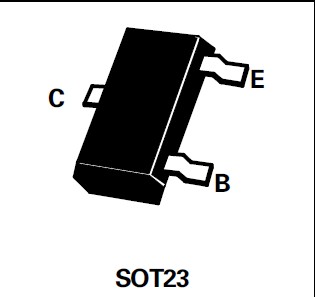

Diagrams
