Product Summary
The BC846B NPN transistor is in a SOT23 plastic package. The applications of the BC846B include General purpose switching and amplification.
Parametrics
BC846B absolute maximum ratings: (1)collector-base voltage open emitter: 80 V; (2)collector-emitter voltage open base: 65 V; (3)emitter-base voltage open collector: 6 V; (4)collector current (DC): 100 mA; (5)peak collector current: 200 mA; (6)peak base current: 200 mA; (7)total power dissipation Tamb ≤ 25 ℃: 250 mW; (8)storage temperature: -65 to +150 ℃; (9)junction temperature: - 150 ℃; (10)operating ambient temperature: -65 to +150 ℃.
Features
BC846B features: (1)Low current (max. 100 mA); (2)Low voltage (max. 65 V).

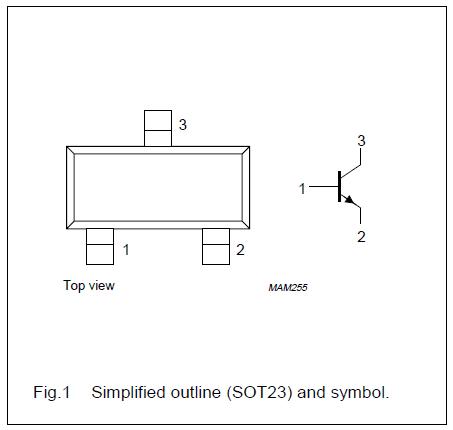

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 BC846BDW1T1 |
ON Semiconductor |
Transistors Bipolar (BJT) 100mA 80V Dual NPN |
Data Sheet |
Negotiable |
|
||||||||||||||||||||||
 |
BC846BLP4-7B |
|
TRANS NPN 65V 100MA X2-DFN1006-3 |
Data Sheet |
|
|
||||||||||||||||||||||
 |
BC846BLT3G |
ON Semiconductor |
Transistors Bipolar (BJT) 100mA 80V NPN |
Data Sheet |
|
|
||||||||||||||||||||||
 |
BC846BMB,315 |
NXP Semiconductors |
Transistors Bipolar (BJT) 65V NPN 100mA 250mW |
Data Sheet |
|
|
||||||||||||||||||||||
 |
BC846BS,115 |
NXP Semiconductors |
Transistors Bipolar (BJT) GENERAL PURPOSE TRANSISTOR |
Data Sheet |
|
|
||||||||||||||||||||||
 |
BC846BMTF |
Fairchild Semiconductor |
Transistors Bipolar (BJT) SOT-23 NPN GP AMP |
Data Sheet |
|
|
||||||||||||||||||||||
|
BC846BPDW1T1G |
ON Semiconductor |
Transistors Bipolar (BJT) 100mA 80V Dual Complementary |
Data Sheet |
|
|
||||||||||||||||||||||
 |
BC846BW,135 |
NXP Semiconductors |
Transistors Bipolar (BJT) TRANS GP TAPE-11 |
Data Sheet |
|
|
||||||||||||||||||||||
