Product Summary

The NE592D14 is a monolithic, two-stage, differential output, wideband video amplifier. The NE592D14 offers fixed gains of 100 and 400 without external components and adjustable gains from 400 to 0 with one external resistor. The NE592D14 has been designed so that with the addition of a few external reactive elements between the gain select terminals, the circuit can function as a high-pass, low-pass, or band-pass filter. Applications are (1)Floppy disk head amplifier; (2)Video amplifier; (3)Pulse amplifier in communications; (4)Magnetic memory; (5)Video recorder systems.

Parametrics

NE592D14 absolute maximum ratings: (1)VCC Supply voltage: ±8 V; (2)VIN Differential input voltage: ±5 V; (3)VCM Common-mode input voltage: ±6 V; (4)IOUT Output current: 10 mA; (5)TA Operating ambient temperature range: 0 to +70 °C; (6)TSTG Storage temperature range: -65 to +150 °C; (7)PD MAX Maximum power dissipation, TA=25°C (still air)1 D-14 package: 0.98 W, D-8 package: 0.79 W, N-14 package: 1.44 W, N-8 package: 1.17 W.

Features

NE592D14 features: (1)120MHz unity gain bandwidth; (2)Adjustable gains from 0 to 400; (3)Adjustable pass band; (4)No frequency compensation required; (5)Wave shaping with minimal external components; (6)MIL-STD processing available.

Diagrams

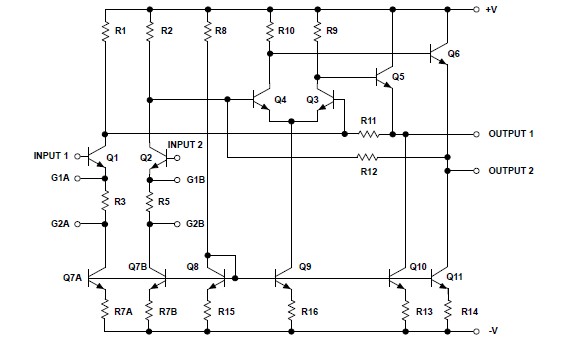

NE592D14 pin connection
