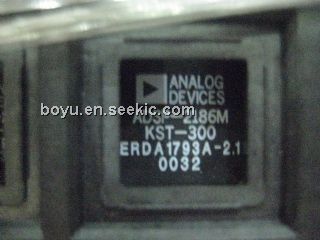

Product Summary
The ADSP-2186MKST is a single-chip microcomputer optimized for digital signal processing (DSP) and other high speed numeric processing applications. The ADSP-2186MKST combines the ADSP-2100 family base architecture (three computational units, data address generators, and a program sequencer) with two serial ports, a 16-bit internal DMA port, a byte DMA port, a programmable timer, Flag I/O, extensive interrupt capabilities, and on-chip program and data memory. The ADSP-2186MKST integrates 80K bytes of on-chip memory configured as 16K words (24-bit) of program RAM and 16K words (16-bit) of data RAM.
Parametrics
ADSP-2186MKST absolute maximum ratings: (1)Supply Voltage: –0.3 V to +7 V; (2)Input Voltage: –0.3 V to VDD + 0.3 V; (3)Output Voltage Swing: –0.3 V to VDD + 0.3 V; (4)Operating Temperature Range (Ambient): –40℃ to +85℃; (5)Storage Temperature Range: –65℃ to +150℃; (6)Lead Temperature (5 sec) TQFP: +280℃.
Features
ADSP-2186MKST features: (1)30 ns Instruction Cycle Time 33 MIPS Sustained Performance; (2)Single-Cycle Instruction Execution; (3)Single-Cycle Context Switch; (4)3-Bus Architecture Allows Dual Operand Fetches in Every Instruction Cycle; (5)Multifunction Instructions; (6)Power-Down Mode Featuring Low CMOS Standby: Power Dissipation with 200 CLKIN Cycle Recovery from Power-Down Condition; (7)Low Power Dissipation in Idle Mode.

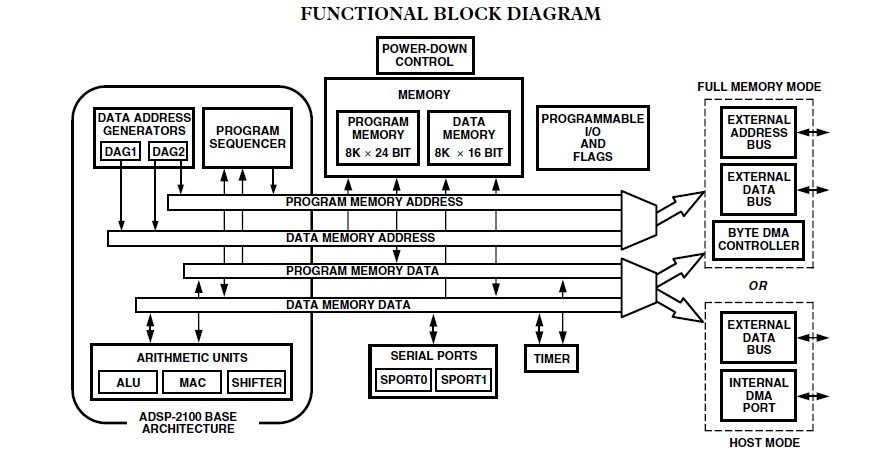

Diagrams
