Product Summary
The std70n02l is an N-channel 25V, 0.0068Ω, 60A, DPAK - IPAK STripFET III Power MOSFET. This is suitable for the most demanding DC-DC converter application where high efficiency is to be achieved.
Parametrics
std70n02l absolute maximum ratings: (1)Drain-source voltage rating: 30 V; (2)Drain-source voltage (VGS = 0): 24 V; (3)Drain-gate voltage (RGS = 20kΩ): 24 V; (4)Gate-source voltage: ± 20 V; (5)Drain current (continuous) at TC = 25℃: 60 A; (6)Drain current (continuous) at TC = 100℃: 42 A; (7)Drain current (pulsed): 240 A; (8)Total dissipation at TC = 25℃: 60 W; (9)Derating factor: 0.4 W/℃; (10)Single pulse avalanche energy: 280 mJ; (11)Operating junction temperature, Storage temperature: -55 to 175℃.
Features
std70n02l features: (1)RDS(ON) Qg industry benchmark; (2)Conduction losses reduced; (3)Switching losses reduced; (4)Low threshold device.

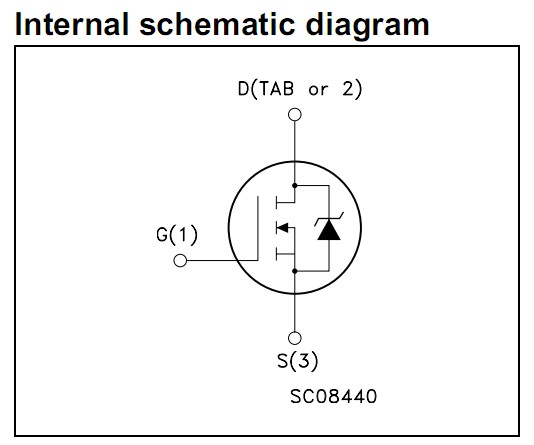

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 STD70N02L |
STMicroelectronics |
MOSFET N Ch 24V 0.0068 Ohm 60A |
Data Sheet |
Negotiable |
|
||||
|
STD70N02L-1 |
STMicroelectronics |
MOSFET N-Ch, 25V-0.0068ohms 60A |
Data Sheet |
Negotiable |
|
||||
