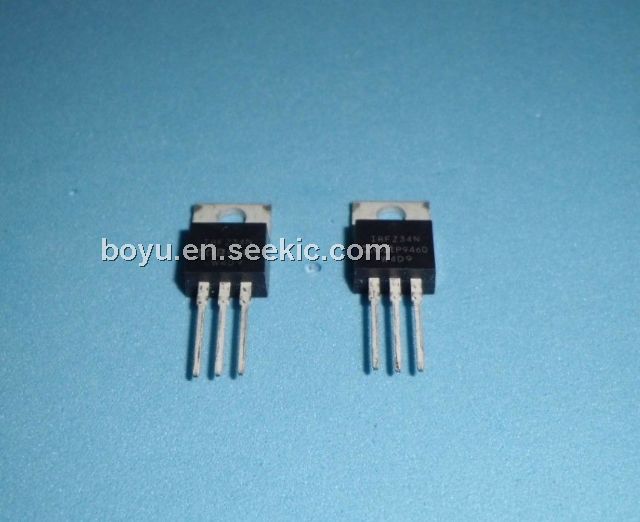

IRFZ34N

IRFZ34N, Power MOSFET, 29 A, 68 W, 20 V, TO

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.30~0.30 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
1 ~ 10000 :	0.30 / Piece

PartNumber:: IRFZ34N

Brand:: International Rectifier - IR | D/C: 11+

Availability:: Supply Ability: 4/Day Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Ms. Sukey's store

(China (Mainland))

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-05-29

From Other Seller

Part Number:IRFZ34N
US $0.30 - 0.30
Quantity:

piece

Product Summary

The IRFZ34N is a Power MOSFET. The IRFZ34N utilizes advanced processing techniques to achieve the lowest possible on-resistance per silicon area. This benefit, combined with the fast switching speed and ruggedized device design that the IRFZ34N is well known for, provides the designer with an extremely efficient device for use in a wide variety of applications. The TO-220 package is universally preferred for all commercial-industrial applications at power dissipation levels to approximately 50 watts. The low thermal resistance and low package cost of the TO-220 contribute to its wide acceptance throughout the industry.

Parametrics

IRFZ34N absolute maximum ratings: (1)ID @ TC = 25℃, continuous drain current, VGS @ 10V: 29 A; (2)ID @ TC = 100℃, continuous drain current, VGS @ 10V: 20 A; (3)Pulsed drain current, IDM: 100 A; (4)PD @TC = 25℃, power dissipation: 68 W; (5)Linear derating factor: 0.45 W/℃; (6)Gate-to-source voltage, VGS: ±20 V; (7)Single pulse avalanche energy, EAS: 65mJ; (8)Avalanche current, IAR: 16 A; (9)Repetitive avalanche energy, EAR: 6.8mJ; (10)Peak diode recovery dv/dt, dv/dt: 5.0 V/ns; (11)Operating junction and storage temperature range, TJ, TSTG: -55 to +175℃; (12)Soldering temperature, for 10 seconds 300℃ (1.6mm from case ).

Features

IRFZ34N features: (1)Advanced process technology; (2)Ultra low on-resistance; (3)Dynamic dv/dt rating; (4)175℃ operating temperature; (5)Fast switching; (6)Ease of paralleling; (7)Lead-free.
