Product Summary

The m24c16-wmn6tpg is a 16Kbit serial I2C bus EEPROM. These I2C-compatible electrically erasable programmable memory (EEPROM) devices are organized as 2048/1024/512/256/128 x 8 (M24C16, M24C08, M24C04, M24C02 and M24C01).In applications of the m24c16-wmn6tpg where this signal is used by slave devices to synchronize the bus to a slower clock, the bus master must have an open drain output, and a pull-up resistor can be connected from Serial Clock (SCL) to VCC.

Parametrics

m24c16-wmn6tpg absolute maximum ratings: (1)Ambient operating temperature: -40℃ to 130℃; (2)Storage temperature: -65℃ to 150℃; (3)PDIP-specific lead temperature during soldering: 260℃; (4)Input or output range: -0.5V to 6.5V; (5) Supply voltage: -0.5V to 6.5V; (6) Electrostatic discharge voltage (human body model): -4000V to 4000V.

Features

m24c16-wmn6tpg features: (1)Two-wire I2C serial interface Supports 400 kHz protocol; (2)Single supply voltage:2.5 V to 5.5 V for m24c16-wmn6tpg; (3)Write Control input; (4)Byte and Page Write (up to 16 bytes); (5)Random and Sequential Read modes; (6)Self-timed programming cycle; (7)Automatic address incrementing; (8)Enhanced ESD/latch-up protection; (9)More than 1 million write cycles; (10)More than 40-year data retention; (11)Packages: ECOPACK(RoHS compliant).

Diagrams

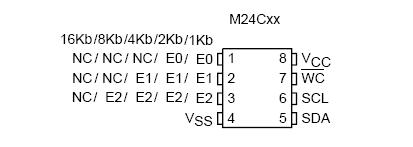

m24c16-wmn6tpg pin connection
