Product Summary

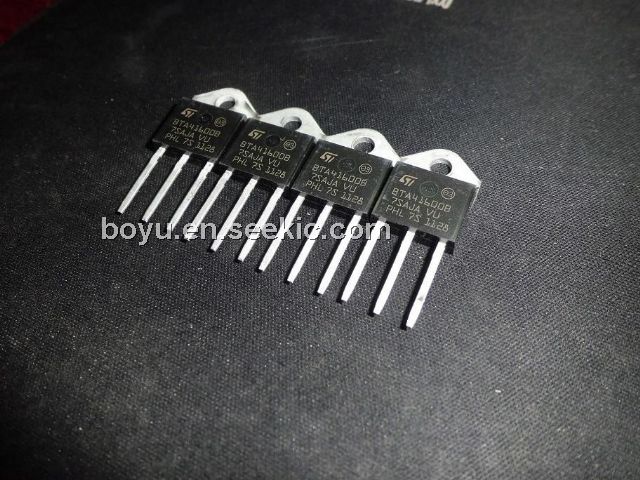

The BTA41-600B is a standard triac. The BTA41-600B is available in high power packages. It is suitable for general purpose AC switching. They can be used as an ON/OFF function in application such as static circuits or for phase control operation in light dimmers, motor speed controllers.
Parametrics
BTA41-600B absolute maximum ratings: (1)IT, RMS on-stage current: 40A; (2)ITSM, non repetitive surge peak on-stage current when F=50Hz and t=20ms: 400A; when F=60Hz and t=16.7ms: 420A; (3)I2t value for fusing when tp=10ms: 880A2s; (4)dl/dt, critical rate of rise of on-stage current IG=2xIGT, tr≤100ns when F=120Hz, Tj=125℃: 20A/μs; (5)IGM, peak gate current, tp=20μs, TJ=125℃: 8A.
Features
BTA41-600B features: (1)IT(RMS): 40A; (2)VDRM/VRRM: 600 and 800V; (3)IGT(Q1): 50mA.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 BTA41-600B |
Other |
|
Data Sheet |
Negotiable |
|
||||||||||||
 |
BTA41-600BRG |
STMicroelectronics |
Triacs 40 Amp 600 Volt |
Data Sheet |
|
|
||||||||||||
