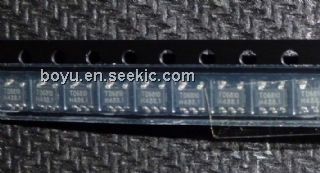

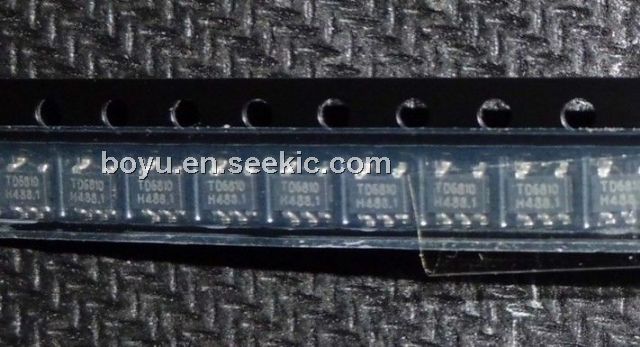

Product Summary
The TD6810 is a high efficiency monolithic synchronous buck regulator using a constant frequency, current mode architecture. The TD6810 is available in an adjustable version and fixed output voltages of 1.5V and 1.8V. Supply current during operation is only 20mA and drops to ≤1mA in shutdown. The 2.5V to 5.5V input voltage range makes the TD6810 ideally suited for single Li-Ion battery-powered applications. The typical applications of the TD6810 include: (1)Cellular Telephones; (2)Personal Information Appliances; (3)Wireless and DSL Modems; (4)Digital Still Cameras; (5)MP3 Players; (6)Portable Instruments.
Parametrics
TD6810 absolute maximum ratings: (1)Input Supply Voltage: -0.3 ~6 V; (2)RUN, VFB Voltages: -0.3 ~ VIN V; (3)SW Voltage: -0.3V ~(VIN+0.3) V; (4)P-Channel Switch Source Current (DC): 1000 mA; (5)N-Channel Switch Sink Current (DC): 1000 mA; (6)Peak SW Sink and Source Current: 1.3 A; (7)Operating Temperature Range: -40~+85℃; (8)Junction Temperature: 125℃; (9)Lead Temperature (Soldering, 10 sec): 300℃; (10)Storage Temperature Range: -65~150℃.
Features
TD6810 features: (1)High Efficiency: Up to 96%; (2)High Efficiency at light loads; (3)Very Low Quiescent Current: Only 20mA During Operation; (4)800mA Output Current; (5)2.5V to 5.5V Input Voltage Range; (6)1.5MHz Constant Frequency Operation; (7)No Schottky Diode Required; (8)Low Dropout Operation: 100% Duty Cycle; (9)0.6V Reference Allows Low Output Voltages; (10)Shutdown Mode Draws .1mA Supply Current; (11)Current Mode Operation for Excellent Line and Load Transient Response; (12)Overtemperature Protected; (13)Low Profile (1mm) TSOT23-5 Package.

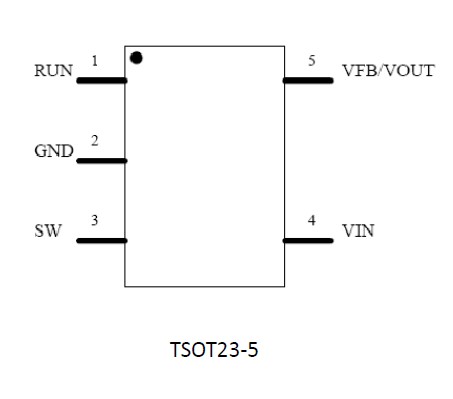

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 TD6810 |
Panduit |
Wire Ducting T130 Divider Wall 10ft. |
Data Sheet |
Negotiable |
|
||||
