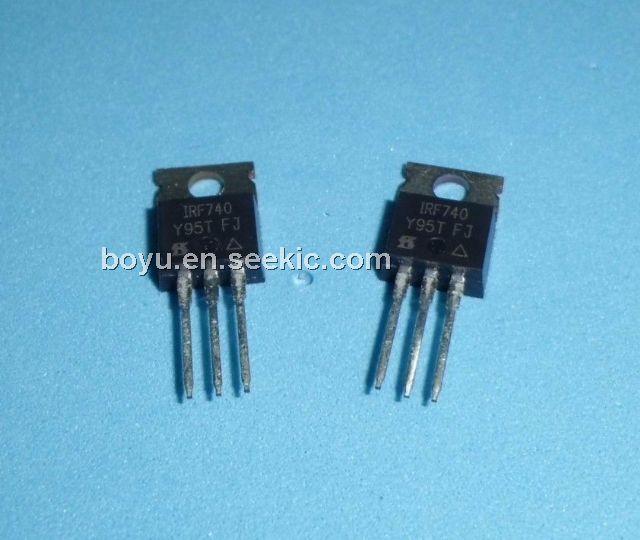

Product Summary

The IRF740 is an N-channel, enhancement mode, power MOSFET designed especially for high voltage, high speed applications, such as off-line switching power supplies, UPS, AC and DC motor controls, relay and solenoid drivers.

Parametrics

IRF740 absolute maximum ratings: (1)VDSS, drain to source voltage: 400V; (2)VDGR, drain to gate voltage: 400V, ; (3)VGS, gain to source voltage: ±20V; (4)Tj, Tstg, operating junction temperature storage temeprature: -55 to 150℃; (5)TL, maximum lead temperature for soldering purpose: 275℃.

Features

IRF740 features: (1)VGS rated at ±20V; (2)silicon gate for fast switching speeds; (3)IDSS, VDS(on), SOA and VGS(th) specified at elevated temeprature; (4)rugged.

Diagrams

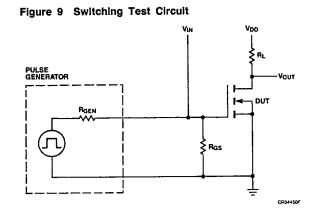

IRF740 circuit diagram
