Product Summary

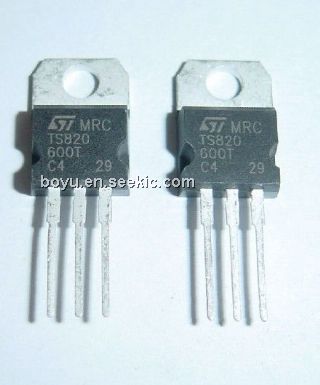

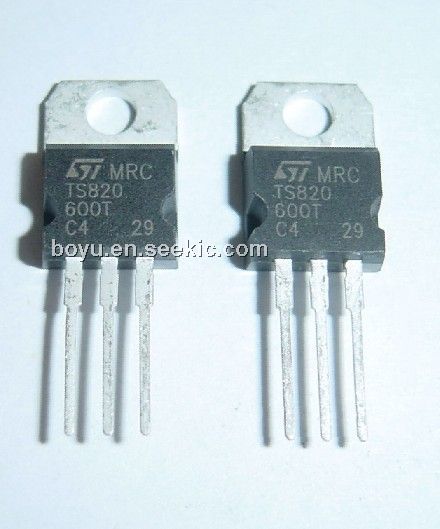

The TS820-600T is an 8 A SCR. The TS820-600T is suitable to fit all modes of control found in applications such as overvoltage crowbar protection, motor control circuits in power tools and kitchen aids, inrush current limiting circuits, capacitive discharge ignition and voltage regulation circuit. Available in through-hole or surface-mount packages, the TS820-600T provide an optimized performance in a limited space.

Parametrics

TS820-600T absolute maximum ratings: (1)IT(RMS), on-state rms current (180° conduction angle), Tc = 110 °C: 8 A; T0-220FPAB, Tc = 91 °C: 8 A; (2)IT(AV), average on-state current (180° conduction angle)Tc = 110 °C: 5 A; T0-220FPAB, Tc = 91 °C: 5 A; (3)ITSM, non repetitive surge peak on-state current tp = 8.3 ms, Tj = 25 °C: 73 A; tp = 10 ms, Tj = 25 °C: 70 A; (4)I2t, I2t value for fusing tp = 10 ms, Tj = 25 °C 24.5 A2S; (5)dI/dt, critical rate of rise of on-state current IG = 2 x IGT , tr ≤ 100 ns, F = 60 Hz, Tj = 125 °C: 50 A/μs; (6)IGM, peak gate current, tp = 20 μs, Tj = 125 °C: 4 A; (7)PG(AV), average gate power dissipation, Tj = 125 °C: 1 W; (8)Tstg, storage junction temperature range: - 40 to + 150 °C; (9)Tj, operating junction temperature range: - 40 to + 125 °C; (10)VRGM, maximum peak reverse gate voltage: 5 V.

Features

TS820-600T features: (1)On-state rms current, IT(RMS)8 A; (2)Repetitive peak off-state voltage, VDRM/VRRM 600 and 800 V; (3)Triggering gate current, IGT 0.2 to 15 mA.

Diagrams

TS820-600T pin connection
