Product Summary

The irlr7821trpbf is a hexfet power mosfet. It is ideal for: (1)High Frequency Synchronous Buck Converters for Computer Processor Power; (2)High Frequency Isolated DC-DC Converters with Synchronous Rectification for Telecom and Industrial Use.


Parametrics

irlr7821trpbf absolute maximum ratings: (1)VDS Drain-to-Source Voltage: 30 V; (2)VGS Gate-to-Source Voltage: 20 V; (3)ID @ TC = 25°C Continuous Drain Current, VGS @ 10V: 65 V; (4)ID @ TC = 100°C Continuous Drain Current, VGS @ 10V: 47 A; (5)IDM Pulsed Drain Current: 260 W; (6)PD @TC = 25°C Maximum Power Dissipation: 75W; (7)PD @TC = 100°C Maximum Power Dissipation: 37.5 W; (8)Linear Derating Factor: 0.50 W/°C; (9)TJ Operating Junction and Storage Temperature Range: -55 to + 175°C°C.

Features

irlr7821trpbf features: (1)Very Low RDS(on)at 4.5V VGS; (2)Ultra-Low Gate Impedance; (3)Fully Characterized Avalanche Voltage and Current.

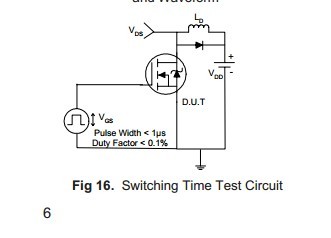

Diagrams

irlr7821trpbf pin connection

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
IRLR7821TRPBF
IRLR7821TRPBF
International Rectifier
MOSFET
Data Sheet
0-1350: $0.27
1350-2000: $0.27
