Product Summary
The irfr3711ztr is a HEXFET power MOSFET. Applications are (1)High Frequency Synchronous Buck Converters for Computer Processor Power; (2)High Frequency Isolated DC-DC Converters with Synchronous Rectification for Telecom and Industrial Use.
Parametrics
irfr3711ztr absolute maximum ratings: (1)VDS Drain-to-Source Voltage: 20 V; (2)VGS Gate-to-Source Voltage: 20V; (3)ID @ TC = 25°C Continuous Drain Current, VGS @ 10V: 93A; (4)ID @ TC = 100°C Continuous Drain Current, VGS @ 10V: 66A; (5)IDM Pulsed Drain Current: 370A; (6)PD @TC = 25°C Maximum Power Dissipation: 79W; (7)PD @TC = 100°C Maximum Power Dissipation: 39W:; (8)TJ Operating Junction and: -55 to + 175°C; (9)TSTG Storage Temperature Range: -55 to + 175°C; (10)Soldering Temperature, for 10 seconds: 300°C.
Features
irfr3711ztr features: (1)Very Low RDS(on)at 4.5V VGS; (2)Ultra-Low Gate Impedance; (3)Fully Characterized Avalanche Voltage and Current.

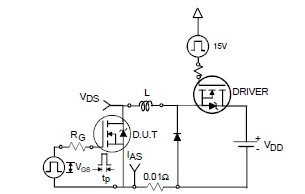

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 IRFR3711ZTR |
|
MOSFET N-CH 20V 93A DPAK |
Data Sheet |
Negotiable |
|
||||||||||||
|
IRFR3711ZTRL |
|
MOSFET N-CH 20V 93A DPAK |
Data Sheet |
Negotiable |
|
||||||||||||
 |
IRFR3711ZTRLPBF |
International Rectifier |
MOSFET MOSFT 20V 93A 5.7mOhm 18nC Qg |
Data Sheet |
|
|
||||||||||||
|
IRFR3711ZTRPBF |
International Rectifier |
MOSFET |
Data Sheet |
|
|
||||||||||||
|
IRFR3711ZTRR |
|
MOSFET N-CH 20V 93A DPAK |
Data Sheet |
Negotiable |
|
||||||||||||
|
IRFR3711ZTRRPBF |
|
MOSFET N-CH 20V 93A DPAK |
Data Sheet |
|
|
||||||||||||
