Product Summary
The irfi740gpbf is a Power MOSFET. Third generation Power MOSFETs from Vishay provide the designer with the best combination of fast switching, ruggedized device design, low on-resistance and cost-effectiveness. The irfi740gpbf eliminates the need for additional insulating hardware in commercial-industrial applications. The moulding compound used provides a high isolation capability and a low thermal resistance between the tab and external heatsink. The isolation is equivalent to using a 100 micron mica barrier with standard TO-220 product. The FULLPAK is mounted to a heatsink using a single clip or by a single screw fixing.
Parametrics
irfi740gpbf absolute maximum ratings: (1)Drain-Source Voltage: 400 V; (2)Gate-Source Voltage: ± 20 V; (3)Continuous Drain Current: 5.4 A; (4)Pulsed Drain Current: 22 A; (5)Linear Derating Factor: 0.32 W/℃; (6)Single Pulse Avalanche Energy: 390 mJ; (7)Repetitive Avalanche Current: 5.4 A; (8)Repetitive Avalanche Energy: 4.0 mJ; (9)Maximum Power Dissipation: 40 W; (10)Operating Junction and Storage Temperature Range: -55 to 150 ℃.
Features
irfi740gpbf features: (1)Isolated Package; (2)High Voltage Isolation = 2.5 kVRMS (t = 60 s; f = 60 Hz); (3)Sink to Lead Creepage Distance = 4.8 mm; (4)Dynamic dV/dt Rating; (5)Low Thermal Resistance; (6)Lead (Pb)-free Available.

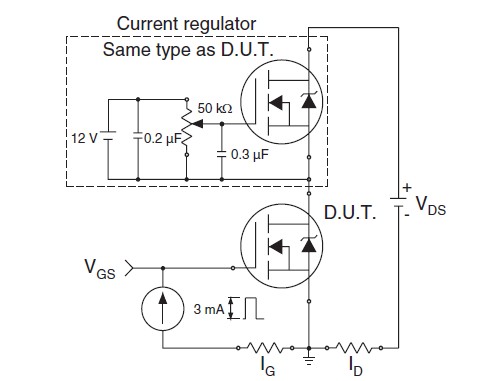

Diagrams
Image | Part No | Mfg | Description | Pricing (USD) |
Quantity | |||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
IRFI740GPBF |
Vishay/Siliconix |
MOSFET N-Chan 400V 5.4 Amp |
Data Sheet |
|
|
|||||||||||||
