Product Summary

The BTA20-600B triac is a high performance glass passivated chip. The SNUBBERLESS concept offers suppression of RC network and BTA20-600B is suitable for application such as phase control and static switching on inductive or resistive load.

Parametrics

BTA20-600B absolute maximum ratings: (1)IT(RMS) RMS on-state current (360° conduction angle): 20 A; (2)ITSM Non repetitive surge peak on-state current(Tj initial = 25℃): tp = 8.3ms 210 A; tp = 10ms 200A; (3)I2t I2t value tp = 10ms: 200 A2s; (4)dI/dt Critical rate of rise of on-state current Gate supply: IG = 500mA dIG/dt = 1A/μs: 20A/μs; Non repetitive 100A/μs; (5)Tstg, -40 to +150℃; Tj: -40 to +125℃; (6)Tl Maximum lead soldering temperature during 10s at 4.5mm from case: 260 ℃.

Features

BTA20-600B features: (1)High commutation: (dI/dt)c > 18A/ms without snubber; (2)High surge current: ITSM = 200A; (3)VDRM up to 800V; (4)BTA Family: Insulating voltage = 2500V(RMS)(UL recognized: E81734).

Diagrams

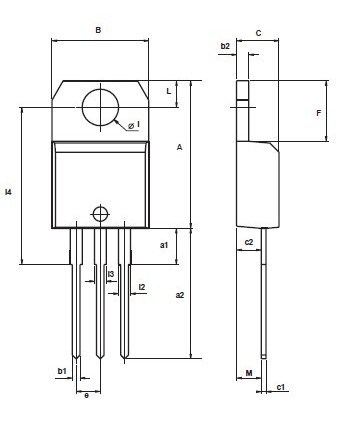

BTA20-600B block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
BTA20-600B
BTA20-600B

Other


Data Sheet

Negotiable
Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
BTA20 BW
BTA20 BW

Other


Data Sheet

Negotiable
BTA20 CW
BTA20 CW

Other


Data Sheet

Negotiable

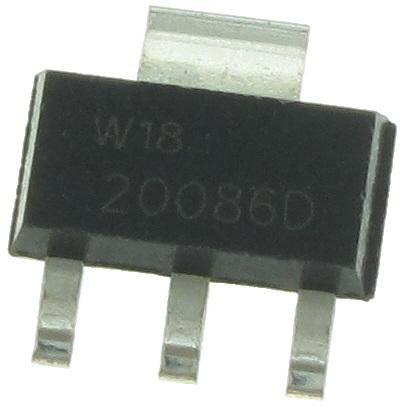

BTA2008-600D,412
