Product Summary
The 2sk2962 is a kind of Silicon N Channel MOS Type Transistor. It is designed for Chopper Regulator, DC−DC Converter and Motor Drive Applications.
Parametrics
2sk2962 absolute maximum ratings: (1)Drain-Source-Voltage, VDS: 100 V; (2)Drain-Gate-Voltage (RGS=20KΩ), VDGR: 100 V; (3)Continous Drain Current, ID: 12 A; (4)Pulsed Drain Current, ID(puls): 3 A; (5)Gate-Source-Voltage, VGS: 20 V; (6)Max. Power Dissipation, PD: 0.9 W; (7)Operating and Storage Temperature Range, Tch: 150℃; Tstg: -55 to +150℃.
Features
2sk2962 features: (1)4-V gate drive; (2)Low drain.source ON resistance : RDS (ON) = 0.5Ω¸ (typ.); (3)High forward transfer admittance : |Yfs| = 1.2 S (typ.); (4)Low leakage current : IDSS = 100 uA (max) (VDS = 100 V); (5)Enhancement mode : Vth = 0.8 to 2.0 V (VDS = 10 V, ID = 1 mA).

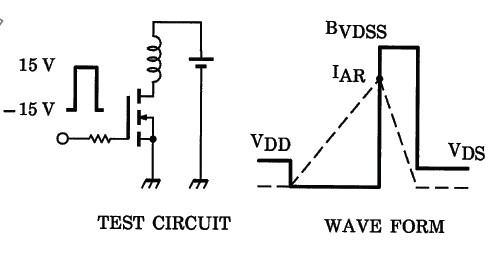

Diagrams
Image | Part No | Mfg | Description | Pricing (USD) |
Quantity | |||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
2SK2962 |
Other |
Data Sheet |
Negotiable |
|
||||||||||||||
2SK2962(F,M) |
MOSFET N-CH 100V 1A TO-92 |
Data Sheet |
|
|
||||||||||||||
2SK2962(TE6,F,M) |
Toshiba |
MOSFET N-ch 100V 1A 0.7 ohm |
Data Sheet |
|
|
