Product Summary
The 10mq040npbf is a surface mount Schottky rectifier. It has been designed for applications requiring low forward drop and very small foot prints on PC boards. Typical applications of the 10mq040npbf include in disk drives, switching power supplies, converters, free-wheeling diodes, battery charging, and reverse battery protection.
Parametrics
10mq040npbf absolute maximum ratings: (1)IF(AV), Max. Average Forward Current: 1.5 A; (2)IFSM, Max. Peak One Cycle Non-Repetitive: 120A; Surge Current: 30A; (3)EAS, Non-Repetitive Avalanche Energy: 3.0 mJ; (4)IAR, Repetitive Avalanche Current: 1.0 A.
Features
10mq040npbf features: (1)Small foot print, surface mountable; (2)Low forward voltage drop; (3)High frequency operation; (4)Guard ring for enhanced ruggedness and long term reliability; (5)Lead-Free ("PbF" suffix).

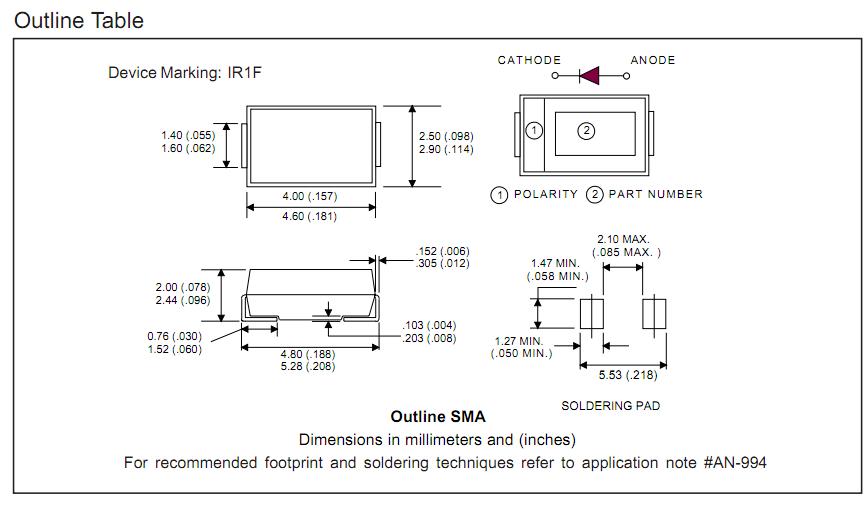

Diagrams
Image | Part No | Mfg | Description | ![]() |
Pricing (USD) |
Quantity | ||||||||||||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
![]() |
![]() 10MQ040NPBF |
![]() |
![]() DIODE SCHOTTKY 40V 1.5A D64 |
![]() Data Sheet |
![]()
|
|
||||||||||||||||||||||
Image | Part No | Mfg | Description | ![]() |
Pricing (USD) |
Quantity | ||||||||||||||||||||||
![]() |
![]() 10MQ040N |
![]() Vishay Semiconductors |
![]() Schottky (Diodes & Rectifiers) 2.1 Amp 40 Volt |
![]() Data Sheet |
![]() Negotiable |
|
||||||||||||||||||||||
![]() |
![]() 10MQ040NPBF |
![]() |
![]() DIODE SCHOTTKY 40V 1.5A D64 |
![]() Data Sheet |
![]()
|
|
||||||||||||||||||||||
![]() |
![]() 10MQ040NTR |
![]() Vishay Semiconductors |
![]() Schottky (Diodes & Rectifiers) 2.1 Amp 40 Volt |
![]() Data Sheet |
![]() Negotiable |
|
||||||||||||||||||||||
![]() |
![]() 10MQ040NTRPBF |
![]() |
![]() DIODE SCHOTTKY 40V 1.5A SMA |
![]() Data Sheet |
![]()
|
|
||||||||||||||||||||||
![]() |
![]() 10MQ060N |
![]() Vishay Semiconductors |
![]() Schottky (Diodes & Rectifiers) 2.1 Amp 60 Volt |
![]() Data Sheet |
![]() Negotiable |
|
||||||||||||||||||||||
![]() |
![]() 10MQ060NPBF |
![]() |
![]() DIODE SCHOTTKY 60V 1.5A D64 |
![]() Data Sheet |
![]()
|
|
