SI4730-C40-GUR1

Product Summary

The SI4730-C40-GUR1 is a digital CMOS AM/FM radio receiver. The SI4730-C40-GUR1 integrates the complete tuner function from antenna input to digital audio output and includes a stereo audio AUXIN ADC input for converting analog audio into standard I2S digital audio, enabling a cost efficient digital audio platform for consumer electronic applications with high TDMA noise immunity, superior radio performance, and high fidelity audio power amplification. When enabling the analog inputs in stereo AUXIN ADC-mode, the SI4730-C40-GUR1 supports I2S digital audio output only (no analog output). The applications of the SI4730-C40-GUR1 include (1)Table and portable radios; (2)Mini/micro systems; (3)CD/DVD and Blu-ray players; (4)Stereo boom boxes; (5)Modules for consumer electronics; (6)Clock radios; (7)Mini HiFi and docking stations; (8)Entertainment systems.

Parametrics

SI4730-C40-GUR1 absolute maximum ratings: (1)Analog supply voltage, VA: –0.5 to 5.8 V; (2)Digital and I/O supply voltage, VD: –0.5 to 3.9 V; (3)Input current3, IIN: 10 mA; (4)Input voltage3, VIN: –0.3 to (VIO + 0.3)V; (5)Operating temperature, TOP: –40 to 95 °C; (6)Storage temperature, TSTG: –55 to 150 °C; (7)RF input level4: 0.4 Vpk.

Features

SI4730-C40-GUR1 features: (1)Worldwide FM band support (64–108 MHz); (2)Worldwide AM band support (520–1710 kHz); (3)SW band support (Si4734/35)(2.3–26.1 MHz); (4)LW band support (Si4734/35)(153–279 kHz); (5)Excellent real-world performance; (6)Integrated VCO; (7)Advanced AM/FM seek tuning; (8)Automatic frequency control (AFC); (9)Automatic gain control (AGC); (10)Digital FM stereo decoder; (11)Programmable de-emphasis; (12)Advanced Audio Processing; (13)Multiplexed stereo audio AUXIN ADC with 85 dB dynamic range; (14)Seven selectable AM channel filters; (15)AM/FM/SW/LW digital tuning; (16)EN55020 compliant; (17)No manual alignment necessary; (18)Programmable reference clock; (19)Adjustable soft mute control; (20)RDS/RBDS processor (Si4731/35); (21)Digital audio out; (22)2-wire and 3-wire control interface; (23)Integrated LDO regulator; (24)Wide range of ferrite loop sticks and air loop antennas supported; (25)QFN and SSOP packages; (26)RoHS compliant.

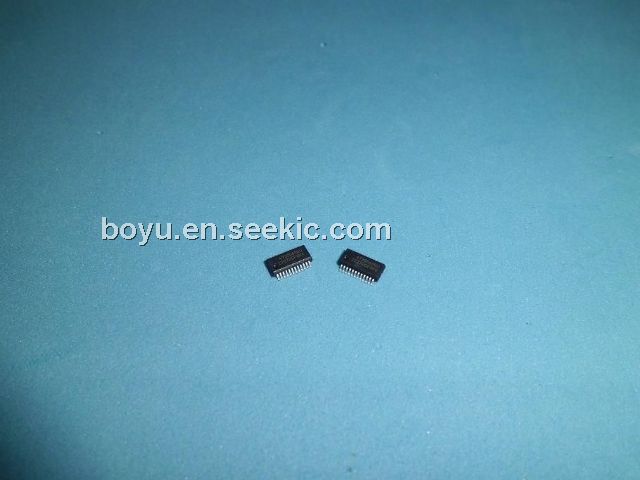

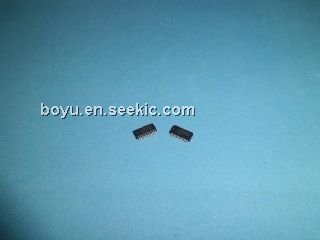

Diagrams
