Product Summary
The td62553s is a 4ch single driver comprised of four NPN transistor arrays. Applications include relay, hammer, lamp and display(LED) drivers.
Parametrics
td62553s absolute maximum ratings: (1)Collector-emitter voltage, VCEO: 25V; (2)Collector-base voltage, VCBO: 35V; (3)Collector voltage, IC: 150mA/ch; (5)Input voltage, VIN: 20V; (6)Input current, IIN: 10mA; (7)Power dissipation, PD: 0.75W; (8)Operating temperature, Topr: -40 to 85℃; (9)Storage temperature, Tstg: -55 to 150℃.
Features
td62553s features: (1)Output current 150mA; (2)High sustaining voltage output 25V; (3)Low saturation voltage VCS=0.5V @ Iout=50mA; (4)inputs compatible with various type logic; (5)Package type-S: SIP-9pin.

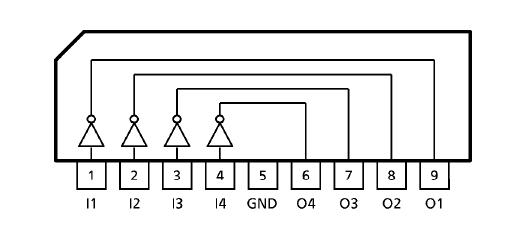

Diagrams
