UPD5713TK-E2-A

upd5713tk-e2-a, wide band spdt switch, 4.6 V, 2.5 GHz, 1dB, SOT-463

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.11~0.11 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
1 ~ 2000 :	0.11 / Piece

PartNumber:: UPD5713TK-E2-A

Brand:: NEC - Nec | Pack: | D/C: 07+

Availability:: Supply Ability: 2000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Ms. Sukey's store

(China (Mainland))

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-08-02

From Other Seller

Part Number:UPD5713TK-E2-A
US $0.11 - 0.11
Quantity:

piece

Product Summary

The upd5713tk-e2-a is a CMOS MMIC for wide-band SPDT Single Pole Double Throw which were designed for mobile communications, wireless communications and another general-purpose RF switching application. This device can operate frequency from 0.05GHz to 2.5GHz,, having the low insertion loss and high isolation. This device is housed in a 6-pin lead-less minimold package 1511 . And this package is able to high-density surface mounting. It is ideal for: (1)Mobile communications; (2)Wireless communications; (3)Another general-purpose RF switching applications.

Parametrics

upd5713tk-e2-a absolute maximum ratings: (1)Supply Voltage VDD: -0.5 to +4.6 V; (2)Switch Control Voltage Vcont: -0.5 to +4.6 V; (3)Voltage Difference Vcont: - VDD +0.5 V; (4)Input Power Pin: +23 dBm; (5)Power Dissipation PD: 203Note mW; (6)Operating Ambient Temperature TA: -45 to +85°C; (7)Storage Temperature Tstg: -65 to +150°C.

Features

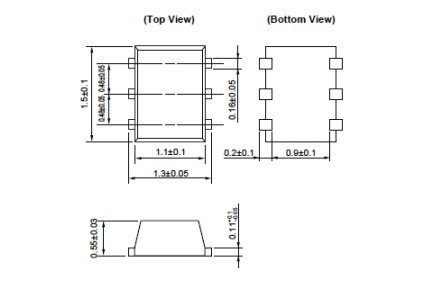

upd5713tk-e2-a features: (1)Supply Voltage : VDD = 1.8V to 3.3V 2.8V TYP.; (2)Switch Control Voltage : Vcont H = 1.8V to 3.3V 2.8V TYP.;Vcont L = -0.2 to +0.4V 0V TYP.; (3)Low Insertion Loss : LINS1 = 0.6dB TYP.@ f = 0.05 to 1.0GHz, VDD = 2.8V, Vcont = 2.8V/0V;LINS2 = 0.8dB TYP.@ f = 1.0 to 2.0GHz, VDD = 2.8V, Vcont = 2.8V/0V;LINS3 = 0.95dB TYP.@ f = 2.0 to 2.5GHz, VDD = 2.8V, Vcont = 2.8V/0V; (4)High Isolation : ISL1 = 32.5dB TYP. @ f = 0.05 to 1.0GHz, VDD = 2.8V, Vcont = 2.8V/0V;ISL2 = 25dB TYP. @ f = 1.0 to 2.0 GHz, VDD = 2.8V, Vcont = 2.8V/0V;ISL3 = 22.5dB TYP. @ f = 2.0 to 2.5 GHz, VDD = 2.8V, Vcont = 2.8V/0V; (5)Handling Power : Pin 1dB = +21.0dBm TYP.@ f = 1.0GHz, VDD = 2.8V, Vcont = 2.8V/0V; (6)Pin 0.1dB = +17.0dBm TYP.@ f = 1.0GHz, VDD = 2.8V, Vcont = 2.8V/0V; (7)High-density surface mounting : 6-pin lead-less minimold package 1.5 1.1 0.55 mm.
