Product Summary
The ts5a23157rser is a SPDT analog switch. The ts5a23157rser is a dual single-pole double-throw (SPDT) analog switch designed to operate from 1.65 V to 5.5 V. This device can handle both digital and analog signals. Signals up to 5.5 V (peak) can be transmitted in either direction. The applications of the ts5a23157rser include Sample-and-Hold Circuits, Battery-Powered Equipment, Audio and Video Signal Routing and Communication Circuits.
Parametrics
ts5a23157rser absolute maximum ratings: (1)Supply voltage range: –0.5 to 6.5 V; (2)Analog voltage range: –0.5 to V+ + 0.5 V; (3)Analog port diode current: ±50 mA ; (4)On-state switch current: ±50 mA; (5)Digital input voltage range: –0.5 to 6.5 V; (6)Digital input clamp current: –50 mA; (7)Package thermal impedance: 56.5 ℃/W; (8)Storage temperature range: –65 to 150 ℃.
Features
ts5a23157rser features: (1)Specified Break-Before-Make Switching; (2)Low ON-State Resistance (10 Ω); (3)Control Inputs Are 5-V Tolerant; (4)Low Charge Injection; (5)Excellent ON-Resistance Matching; (6)Low Total Harmonic Distortion; (7)1.8-V to 5.5-V Single-Supply Operation; (8)Latch-Up Performance Exceeds 100 mA Per JESD 78, Class II.

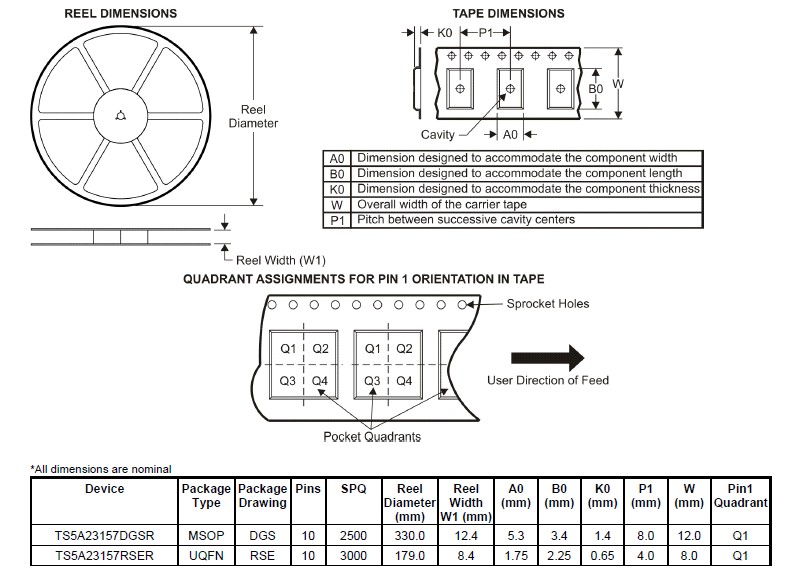

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 TS5A23157RSER |
Texas Instruments |
Analog Switch ICs Dual 10-Ohm SPDT Analog Switch |
Data Sheet |
|
|
||||||||||||
|
TS5A23157RSERG4 |
Texas Instruments |
Analog Switch ICs Dual 10O SPDT Ana Sw |
Data Sheet |
|
|
||||||||||||
