Product Summary
The tl431aclp is a three-termina programmable shunt regulator diode. The voltage references of the tl431aclp operate as a low temperature coefficient zener which is programmable from Vref to 36V with two external resistors. The tl431aclp exhibits a wide operating current range of 1.0mA to 100mA with a typical dynamic impedance of 0.22Ω.
Parametrics
tl431aclp absolute maximum ratings: (1) Cathode to Anode Voltage VKA: 37V; (2) Cathode Current Range, Continuous IK: -100 to +150mA; (3) Reference Input Current Range, Continuous Iref: -0.05 to +10mA; (4) Operating Junction Temperature Tj: 150°C; (5) Operating Ambient Temperature Range TA: 0 to 70°C; (6) Storage Temperature Range Tstg: -65 to 150°C; (7) Total Power Dissipation @ TA= 25°C, Derate above 25°C Ambient Temperature: 0.7W; (8) Total Power Dissipation @ Tc= 25°C, Derate above 25°C Ambient Temperature: 1.5W.
Features
tl431aclp features: (1) Programmable Output Voltage to 36 V; (2) Low Dynamic Output Impedance, 0.22Ω typical; (3) Sink Current Capability of 1.0 mA to 100 mA; (4) quivalent Full-Range Temperature Coefficient of 50 ppm/°C Typical; (5) Temperature Compensated for Operation over Full Rated Operating Temperature Range; (6) Low Output Noise Voltage.

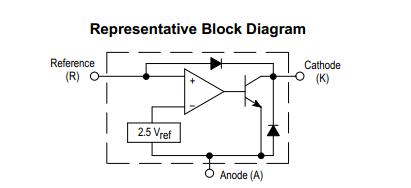

Diagrams
Image | Part No | Mfg | Description | Pricing (USD) |
Quantity | |||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TL431ACLP |
Texas Instruments |
Voltage & Current References Adj Shunt |
Data Sheet |
|
|
|||||||||||||
TL431ACLP_Q |
Fairchild Semiconductor |
Voltage & Current References Programmable Shunt 0.1 |
Data Sheet |
Negotiable |
|
|||||||||||||
TL431ACLPG |
ON Semiconductor |
Voltage & Current References 2.5-36V ADJ 1-100mA |
Data Sheet |
|
|
|||||||||||||
TL431ACLPE3 |
Texas Instruments |
Voltage & Current References Adjustable Precision Shunt Regulator |
Data Sheet |
|
|
|||||||||||||
TL431ACLPM |
Texas Instruments |
Voltage & Current References Adjustable Precision Shunt Regulator |
Data Sheet |
|
|
|||||||||||||
TL431ACLPME3 |
Texas Instruments |
Voltage & Current References Adjustable Precision Shunt Regulator |
Data Sheet |
Negotiable |
|
|||||||||||||
TL431ACLPRAG |
ON Semiconductor |
Voltage & Current References 2.5-36V ADJ 1-100mA |
Data Sheet |
|
|
|||||||||||||
TL431ACLPR |
Texas Instruments |
Voltage & Current References Adj Shunt |
Data Sheet |
|
|
