PIC24FJ16GA004-I/PT

Product Summary

The PIC24FJ16GA004-I/PT is a LED Lighting. The PIC24FJ16GA004-I/PT is no longer used just for providing the pretty red and green indicator lights on electronic equipment. Advances in technology have allowed the PIC24FJ16GA004-I/PT to be used as practical sources of illumination. The primary benefits of the PIC24FJ16GA004-I/PT is a long life, durability and efficiency. When driven properly, a power the PIC24FJ16GA004-I/PT can last tens of thousands of hours without a degradation of light output. The typical efficacy of a power PIC24FJ16GA004-I/PT, measured in lumens per watt, is 40-80. This is several times greater than incandescent light sources and is only exceeded by fluorescent light sources. Since the PIC24FJ16GA004-I/PT is a solid-state device, it can withstand shock and vibration that would damage a filament bulb. The applications of the PIC24FJ16GA004-I/PT include Automotive and aircraft cabin lighting, Automotive and aircraft instrument panel lighting, Architectural emergency exit lighting, Architectural color effect lighting, Industrial and outdoor lighting, Traffic and railway signals, Automotive brake lights, Dot matrix signs and video displays, LCD display backlighting, Personal flashlights, Medical instrument and tool lighting and Digital camera flash and video light.

Parametrics

PIC24FJ16GA004-I/PT absolute maximum ratings: (1)RAM Size: 4K×8; (2)Supply voltage: 2V to 3.6V; (3)Data Converters: A/D 10x10b; (4)Oscillator Type: Internal; (5)Operating Temperature:-40 to 85℃.

Features

PIC24FJ16GA004-I/PT features: (1)Devices with the Capture-Compare-PWM (CCP) module can generate PWM signals to control power circuits using an on-chip digital timebase. The signal pulse width is controlled by the MCU clock and a duty cycle register; (2)The Enhanced CCP (ECCP) module allows one PWM signal to control 2 or 4 output pins for half-bridge or H-bridge control, respectively.; (3)Devices that have a comparator and the ECCP module can use the comparator signal to control the turn-off time of the PWM signal; (4)Devices with comparators and a PWM SR latch can use comparator signals and/or clock pulses to turn the latch output on and off.

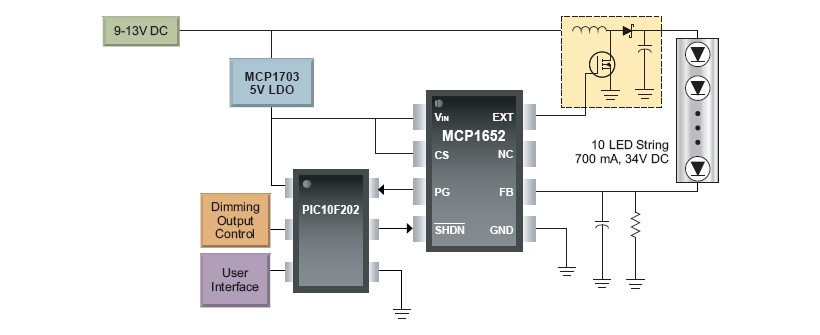

Diagrams
