Product Summary
The tk11215cmcl-g is a low dropout linear regulator with a builtin electronic switch. The internal switch can be controlled by TTL or CMOS logic level. The device is in the “on” state when the control pin is pulled to a logic high level. An external capacitor can be connected to the noise bypass pin to lower the output noise level to 30 μVrms. It is ideal for: (1)Battery Powered Systems; (2)Cellular Telephones; (3)Pagers; (4)Personal Communications Equipment; (5)Portable Instrumentation; (6)Portable Consumer Equipment; (7)Radio Control Systems; (8)Toys; (9)Low Voltage Systems.
Parametrics
tk11215cmcl-g absolute maximum ratings: (1)Operate time: 1 ms max.; (2)Release time: 1/2 of load power source cycle + 1 ms max.; (3)Output ON voltage drop: 1.6 V (RMS)max.; (4)Leakage current: 2 mA max. (at 100 VAC); (5)Insulation resistance: 1,000 MΩ min. (at 500 VDC); (6)Dielectric strength: 2,000 VAC, 50/60 Hz for 1 min; (7)Vibration resistance Malfunction: 10 to 55 Hz, 1.5-mm double amplitude; (8)Shock resistance Malfunction: 1,000 m/s 2 (approx. 100G); (9)Ambient temperature Operating: –30°C to 80°C; Storage: –30°C to 100°C; (10)Ambient humidity Operating: 45% to 85%; (11)Weight: Approx. 15 g.
Features
tk11215cmcl-g features: (1)Supply Voltage: 16 V; (2)Power Dissipation SOT-23L (Note1): 600 mW; (3)Power Dissipation SOT-89 (Note1): 900 mW; (4)Reverse Bias: 10 V; (5)Storage Temperature Range: -55 to +150 °C; (6)Operating Temperature Range: -30 to +80 °C; (7)Operating Voltage Range: 1.8 to 14.5 V; (8)Junction Temperature: 150 °C.

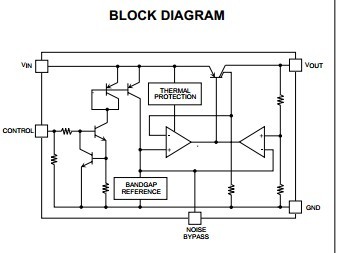

Diagrams
