Product Summary
The Ttk11118cscl-g is a low dropout linear regulator with a builtin electronic switch. The internal switch can be controlled by TTL or CMOS logic levels. The load current is internally monitored and the tk11118cscl-g will shut down in the presence of a short circuit or overcurrent condition at the output. The tk11118cscl-g is available in a miniature SOT-23-5 surface mount package. Applications are (1)Battery Powered Systems; (2)Cellular Telephones; (3)Pagers; (4)Personal Communications Equipment; (5)Portable Instrumentation; (6)Portable Consumer Equipment; (7)Radio Control Systems; (8)Toys.
Parametrics
tk11118cscl-g absolute maximum ratings: (1)Supply Voltage: 16 V; (2)Control Terminal Voltage: 12 V; (3)Noise Bypass Terminal Voltage: 5 V; (4)Power Dissipation (Note 1): 500 mW; (5)Reverse Bias: 10 V; (6)Storage Temperature Range: -55 to +150 °C; (7)Operating Temperature Range: -30 to +80 °C; (8)Operating Voltage Range: 1.8 to 12 V; (9)Junction Temperature: 150 °C; (10)Lead Soldering Temperature (10 s): 235 °C.
Features
tk11118cscl-g features: (1)High Voltage Precisioat ± 2.0% or ± 60 mV; (2)Active High On/Off Control; (3)Very Low Dropout Voltage (85 mV at 30 mA); (4)Very Low Noise; (5)Miniature Package (SOT-23-5); (6)Internal Thermal Shutdown; (7)Short Circuit Protection; (8)Excellent Ripple Rejectio(70 dB @ 1 kHz); (9)Reverse Bias Protection.

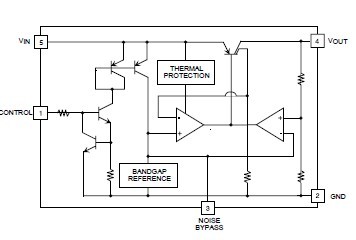

Diagrams
