Product Summary
The tc75s58fu is a CMOS type general-purpose single comparator. The tc75s58fu is capable of single power supply operation and using lower supply currents than the conventional bipolar comparator. The open drain output of the tc75s58fu forms wired OR with other open drain outputs.
Parametrics
tc75s58fu absolute maximum ratings: (1) supply voltage VDD, VSS: ±3.5 or 7V; (2) Differential input voltage DVIN: ±7V; (3) Input voltage VIN: VSS-VDD; (4) Output Current IO: ±35mA; (5) Power Dissipation PD: 200mW; (6) Operating Temperature Topr: -40 to +85°C; (7) Storage temperature Tstg: -55 to +125°C.
Features
tc75s58fu features: (1) low supply current: IDD=10μA (TYp.) ; (2) Single power supply operation; (3) wide common mode input voltage range: VSS-VDD-0.9V; (4) Open drain output circuit; (5) low input bias current; (6) small package.

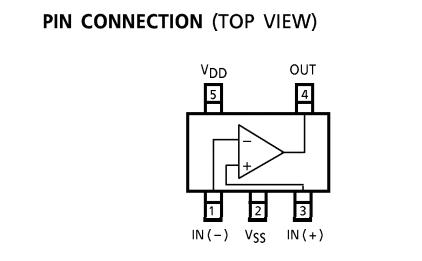

Diagrams
