Product Summary
The tc74hc393af is a high speed CMOS 4-BIT BINARY COUNTER fabricated with silicon gate C2MOS technology. It achieves the high speed operation similar to equivalent LSTTL while maintaining the CMOS low power dissipation. The tc74hc393af contains two independent counter circuits in one package, so that counting or frequency division of eight binary bits can be achieved with one IC.
Parametrics
tc74hc393af absolute maximum ratings: (1)Supply voltage range VCC: −0.5 to 7 V; (2)DC input voltage VIN: −0.5 to VCC + 0.5 V; (3)DC output voltage VOUT: −0.5 to VCC + 0.5 V; (4)Input diode current IIK: ±20 mA; (5)Output diode current IOK: ±20 mA; (6)DC output current IOUT: ±25 mA; (7)DC VCC/ground current ICC: ±50 mA; (8)Power dissipation PD: 180 (SOP)mW; (9)Storage temperature Tstg: −65 to 150 °C.
Features
tc74hc393af features: (1)High speed: fmax = 72 MHz (typ.)at VCC = 5 V; (2)Low power dissipation: ICC = 4 μA (max)at Ta = 25°C; (3)High noise immunity: VNIH = VNIL = 28% VCC (min); (4)Output drive capability: 10 LSTTL loads; (5)Symmetrical output impedance: |IOH| = IOL = 4 mA (min); (6)Balanced propagation delays: tpLH ∼− tpHL; (7)Wide operating voltage range: VCC (opr)= 2 to 6 V; (8)Pin and function compatible with 74LS393.

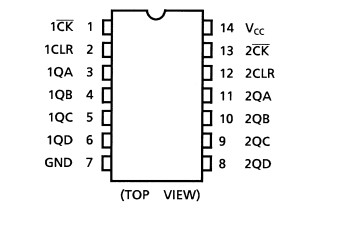

Diagrams
