Product Summary

The SSM3J05FU is a power management switch with high speed switching application.

Parametrics

SSM3J05FU absolute maximum ratings: (1)Drain-source voltage: -20 V; (2)Gate-source voltage: -12 V; (3)Drain current DC: -200 mA; (4)Drain current Pulse: -400 mA; (5)Drain power dissipation: 150 mW; (6)Channel temperature: 150 °C; (7)Storage temperature range: -55 to 150 °C.

Features

SSM3J05FU features: (1)Small package; (2)Low on resistance: Ron = 3.3 Ω (max)(@VGS = -4 V); (3)Low on resistance: Ron = 4.0 Ω (max)(@VGS = -2.5 V); (4)Low gate threshold voltage.

Diagrams

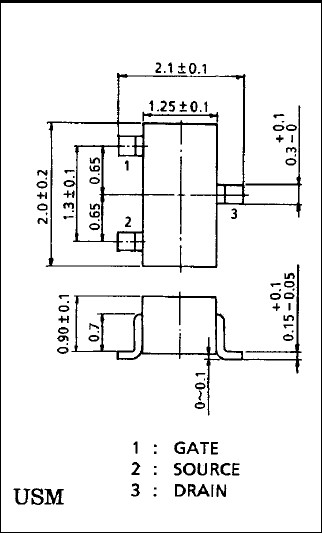

SSM3J05FU pin connection

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
SSM3J05FU
SSM3J05FU
Other

Data Sheet
Negotiable
