Product Summary
The sn74ls06dr is a hex inverter buffer/driver. The sn74ls06dr features high-voltage open-collector outputs to interface with high-level circuits (such as MOS), or for driving high-current loads, and also is characterized for use as inverter buffers for driving TTL inputs. The sn74ls06dr has a rated output voltage of 30 V, and the SN74LS16 has a rated output voltage of 15 V. The maximum sink current for the sn74ls06dr is 30 mA.
Parametrics
sn74ls06dr absolute maximum ratings: (1)Supply voltage, VCC: 7 V; (2)Input voltage, VI: 5.5 V; (3)Output voltage, VO: 30 V; (4)Package thermal impedance, θJA: 86℃/W; (5)Storage temperature range, Tstg:–65 to 150℃.
Features
sn74ls06dr features: (1)Convert TTL Voltage Levels to MOS Levels; (2)High Sink-Current Capability; (3)Input Clamping Diodes Simplify System Design; (4)Open-Collector Driver for Indicator Lamps and Relays; (5)Inputs Fully Compatible With Most TTL Circuits.

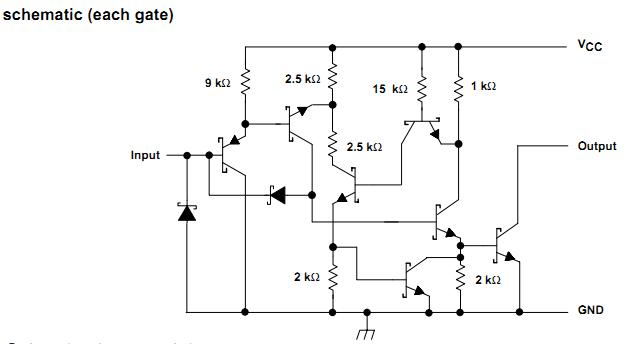

Diagrams
Image | Part No | Mfg | Description | Pricing (USD) |
Quantity | |||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
SN74LS06DR |
Texas Instruments |
Buffers & Line Drivers Hex inverter Buffer/ Driver |
Data Sheet |
|
|
|||||||||||||
SN74LS06DRE4 |
Texas Instruments |
Buffers & Line Drivers Hex inverter Buffer/ Driver |
Data Sheet |
|
|
|||||||||||||
SN74LS06DRG4 |
Texas Instruments |
Buffers & Line Drivers Hex Inverter Buffers Drivers |
Data Sheet |
|
|
