S-812C30AUA-C2KT2G

Product Summary

The S-812C30AUA-C2KT2G is a high-withstand voltage regulator IC which is developed by using the CMOS technology. The S-812C30AUA-C2KT2G is suitable for applications which require withstand because its maximum voltage for operation is as high as 16 V, also for portable device having the low current consumption because the S-812C30AUA-C2KT2G not only has the low current consumption but also a power-off circuit. The S-812C30AUA-C2KT2G operates stably due to the internal phase compensation circuit so that users are able to use ceramic capacitor as the output capacitor. Applications are (1)Power source for home electric/electronic appliances; (2)Power source for battery-powered devices; (3)Power source for communication devices.

Parametrics

S-812C30AUA-C2KT2G absolute maximum ratings: (1)Input voltage VIN: VSS-0.3 to VSS+18 V; (2)Input voltage VON/OFF: VSS-0.3 to VIN+0.3 V; (3)Output voltage VOUT: VSS-0.3 to VIN+0.3 V; (4)Power dissipation SNT-6A(H): 500 mW; (5)Power dissipation SOT-23-5: 250 (When not mounted on board)mW; 600 mW; (6)Power dissipation SOT-89-3: 500 (When not mounted on board)mW; 1000 mW; (7)Power dissipation SOT-89-5: 500 (When not mounted on board)mW; 1000 mW; (8)Power dissipation TO-92: 400 (When not mounted on board)mW; 800 mW; (9)Operating temperature range Topr: -40 to +85 °C; (10)Storage temperature Tstg: -40 to +125 °C.

Features

S-812C30AUA-C2KT2G features: (1)Low current consumption: Current at operation: Typ. 1.0 μA, Max. 1.8 μA (product with 3.0 V); (2)Output voltage: 2.0 to 6.0 V, selectable in 0.1 V step; (3)Output voltage accuracy: ±2.0%; (4)Output current: 50 mA capable (3.0 V output product, VIN=5 V); 75 mA capable (5.0 V output product, VIN=7 V); (5)Dropout voltage: Typ. 120 mV (VOUT = 5.0 V, IOUT = 10 mA); (6)Built-in Power-off circuit: Selectable if power-off function is available or not. Active high or low in the regulator is selectable; (7)Short-circuit protection: Selectable with/without short-circuit protection; Short-circuited current 40 mA Typ.: in the product with protection; (8)Operation voltage: 16 V max; (9)Lead-free product.

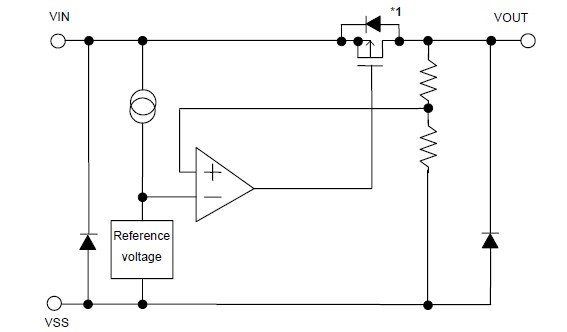

Diagrams
