Product Summary
The RN1303 is a switching, inverter circuit, interface circuit and driver circuit applications.
Parametrics
RN1303 absolute maximum ratings: (1)Collector-base voltage: 50 V; (2)Collector-emitter voltage: 50 V; (3)Emitter-base voltage: 10 V; (4)Collector current: 100 mA; (5)Collector power dissipation: 100 mW; (6)Junction temperature: 150 ℃; (7)Storage temperature range: -55 to 150 ℃.
Features
RN1303 features: (1)With built-in bias resistors.; (2)Simplify circuit design; (3)Reduce a quantity of parts and manufacturing process; (4)Complementary to RN2301~RN2306.

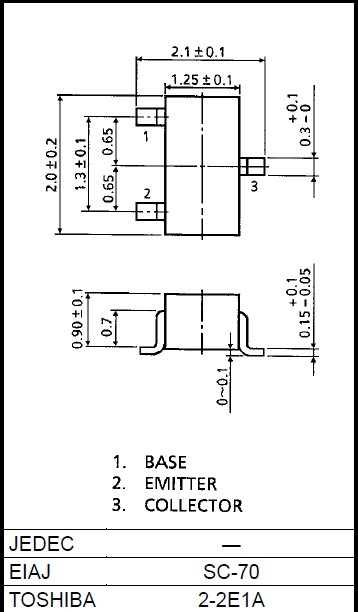

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 RN1303 |
Other |
|
Data Sheet |
Negotiable |
|
||||||||||||
|
RN1303(TE85L,F) |
Toshiba |
Transistors Switching (Resistor Biased) 100mA 50volts 3Pin 22K x 22Kohms |
Data Sheet |
|
|
||||||||||||
