PBSS5240T

PNP low VcEsat (BISS) transistor, -40V, -2A, BGA

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.04~0.04 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
1 ~ 18000 :	0.04 / Piece

PartNumber:: PBSS5240T

Brand:: NXP - NXP | Pack: BGA | D/C: 10+

Availability:: Supply Ability: 18000/Month Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Ms. Sukey's store

(China (Mainland))

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-07-15

From Other Seller

Part Number:PBSS5240T
US $0.04 - 0.04
Quantity:

piece

Product Summary

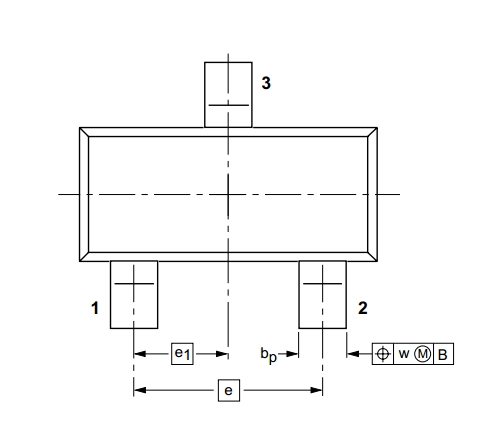

The pbss5240t is a PNP low VcEsat (BISS) transistor. The pbss5240t is in a SOT23 plastic package. Applications of the pbss5240t include: Supply line switching circuits, Battery management applications, DC/DC converter applications, Strobe flash units and Heavy duty battery powered equipment (motor and lamp drivers) .

Parametrics

pbss5240t absolute maximum ratings: (1) (1) collector-base voltage, VCBO: -40V (open emitter) ; (2) collector-emitter voltage VCEO: -40V (open base) ; (3) emitter-base voltage VEBO: -5V (open collector) ; (4) collector current (DC) Ic: -2A; (5) peak collector current ICM: -3A; (6) peak base current IBM: -300mA; (7) total power dissipation: 300mW (Tamb≤25°C) , 480mW (Tamb≤480mW) ; (8) storage temperature Tstg: -65 to +150°C; (9) junction temperature Tj: 150°C; (10) operating ambient temperature Tamb: -65 to +150°C.

Features

pbss5240t features: (1) Low collector-emitter saturation voltage; (2) High current capability; (3) Improved device reliability due to reduced heat generation; (4) Replacement for SOT89/SOT223 standard packaged transistor.
