Product Summary

The njm2885dl1-33(te1 is a low dropout voltage regulator. It is designed for portable application. Advanced Bipolar technology achieves low noise, high ripple rejection and low quiescent current.

Parametrics

njm2885dl1-33(te1 absolute maximum ratings: (1)Input Voltage VIN: +14 V; (2)Power Dissipation PD: 8(Tc=25°C)mW; (3)Operating Temperature Topr: -40 to +85 °C; (4)Storage Temperature Tstg: -40 to +125 °C.

Features

njm2885dl1-33(te1 features: (1)High Ripple Rejection 75dB typ. (f=1kHz); (2)Output Noise Voltage Vno=45μVrms; (3)Output capacitor with 2.2μF ceramic capacitor (Vo≥2.7V); (4)Output Current Io(max.)=500mA; (5)High Precision Output Vo±1.0%; (6)Low Dropout Voltage 0.18V typ. (Io=300mA); (7)Internal Short Circuit Current Limit; (8)Internal Thermal Overload Protection; (9)Bipolar Technology; (10)Package Outline TO-252-3.

Diagrams

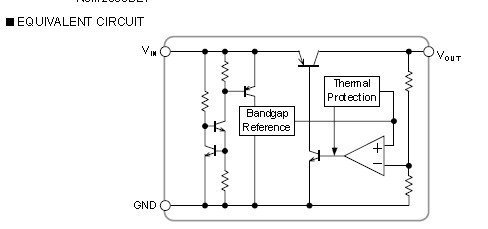

njm2885dl1-33(te1 pin connection
