Product Summary
The mc78l09abdr2 is a positive voltage regulator. The mc78l09abdr2 is inexpensive, easy-to-use devices suitable for a multitude of applications that require a regulated supply of up to 100 mA. The mc78l09abdr2 features internal current limiting and thermal shutdown making it remarkably rugged. No external components are required with the mc78l09abdr2 device in many applications. The mc78l09abdr2 offers a substantial performance advantage over the traditional zener diode resistor combination, as output impedance and quiescent current are substantially reduced.
Parametrics
mc78l09abdr2 absolute maximum ratings: (1)Input Voltage (2.6 V.8.0 V), VI: 30Vdc; (2)Input Voltage (12 V.18 V), VI: 35Vdc; (3)Input Voltage (24 V), VI: 40Vdc; (4)Storage Temperature Range, Tstg: -65 to +150℃; (5)Operating Junction Temperature Range, TJ: 0 to +150℃.
Features
mc78l09abdr2 features: (1)Wide Range of Available, Fixed Output Voltages; (2)Low Cost; (3)Internal Short Circuit Current Limiting; (4)Internal Thermal Overload Protection; (5)No External Components Required; (6)Complementary Negative Regulators Offered; (7)Pb-Free Packages are Available; (8)NCV Prefix for Automotive and Other Applications Requiring Site; (9)and Control Changes.

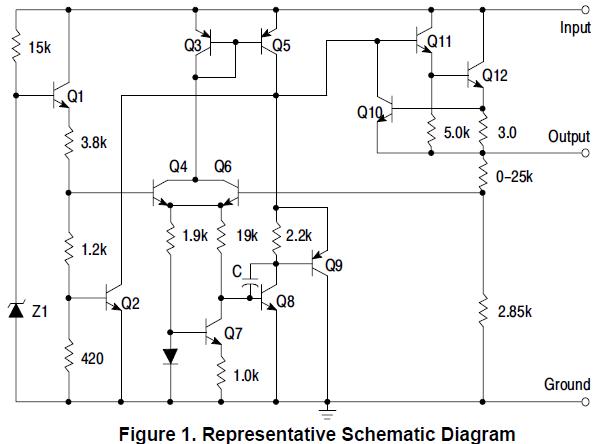

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 MC78L09ABDR2 |
ON Semiconductor |
Linear Regulators - Standard 9V 100mA Postive |
Data Sheet |
Negotiable |
|
||||||||||||
|
MC78L09ABDR2G |
ON Semiconductor |
Linear Regulators - Standard 9V 100mA Postive |
Data Sheet |
|
|
||||||||||||
