Product Summary
The MC74HCT14ADR is a hex schmitt-trigger inverter with LSTTL compatible inputs. The MC74HCT14ADR may be used as a level converter for interfacing TTL or NMOS outputs to high–speed CMOS inputs.
Parametrics
MC74HCT14ADR absolute maximum ratings: (1)DC Supply Voltage (Referenced to GND): – 0.5 to + 7.0 V; (2)DC Input Voltage (Referenced to GND): – 0.5 to VCC + 0.5 V; (3)DC Output Voltage (Referenced to GND): – 0.5 to VCC + 0.5 V; (4)DC Input Current, per Pin: ± 20 mA; (5)DC Output Current, per Pin: ± 25 mA; (6)DC Supply Current, VCC and GND Pins: ± 50 mA; (7)Power Dissipation in Still Air, Plastic DIP: 750 mW; (8)Power Dissipation in Still Air, SOIC Package: 500 mW; (9)Storage Temperature: - 65 to + 150 ℃; (10)Lead Temperature, 1 mm from Case for 10 Seconds (Plastic DIP or SOIC Package): 260 ℃.
Features
MC74HCT14ADR features: (1)Output Drive Capability: 10 LSTTL Loads; (2)TTL/NMOS–Compatible Input Levels; (3)Outputs Directly Interface to CMOS, NMOS and TTL; (4)Operating Voltage Range: 4.5 to 5.5 V; (5)Low Input Current: 1.0 mA; (6)In Compliance with the Requirements Defined by JEDEC Standard No. 7A; (7)Chip Complexity: 72 FETs or 18 Equivalent Gates.

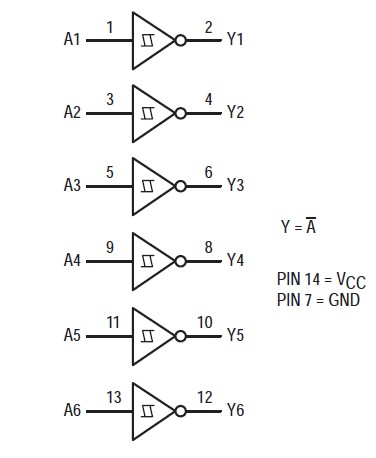

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 MC74HCT14ADR2 |
ON Semiconductor |
Inverters 5V CMOS Hex |
Data Sheet |
Negotiable |
|
||||||||||||
|
MC74HCT14ADR2G |
ON Semiconductor |
Inverters 5V CMOS Hex Schmitt Trigger |
Data Sheet |
|
|
||||||||||||
