Product Summary
The MC74HC4052FR1 is an analog multiplexer/ Demultiplexer.
Parametrics
MC74HC4052FR1 absolute maximum ratings: (1)Positive DC Supply Voltage (Referenced to GND): - 0.5 to + 7.0 V; (2)Positive DC Supply Voltage (Referenced to VEE): - 0.5 to + 14.0 V; (3)Negative DC Supply Voltage (Referenced to GND): - 7.0 to + 5.0 V; (4)Analog Input Voltage: VEE - 0.5 to VCC + 0.5 V; (5)Digital Input Voltage (Referenced to GND): – 0.5 to VCC + 0.5 V; (6)DC Current, Into or Out of Any Pin: ± 25 mA; (7)Power Dissipation in Still Air, Plastic DIP: 750 mW; (8)EIAJ/SOIC Package: 500 mW; (9)TSSOP Package: 450 mW; (10)Storage Temperature Range: - 65 to + 150 ℃; (11)Lead Temperature, 1 mm from Case for 10 Seconds Plastic DIP, SOIC or TSSOP Package: 260 ℃.
Features
MC74HC4052FR1 features: (1)Fast Switching and Propagation Speeds; (2)Low Crosstalk Between Switches; (3)Diode Protection on All Inputs/Outputs; (4)Analog Power Supply Range (VCC – VEE)= 2.0 to 12.0 V; (5)Digital (Control)Power Supply Range (VCC – GND)= 2.0 to 6.0 V; (6)Improved Linearity and Lower ON Resistance Than Metal–Gate Counterparts; (7)Low Noise; (8)In Compliance With the Requirements of JEDEC Standard No. 7A.

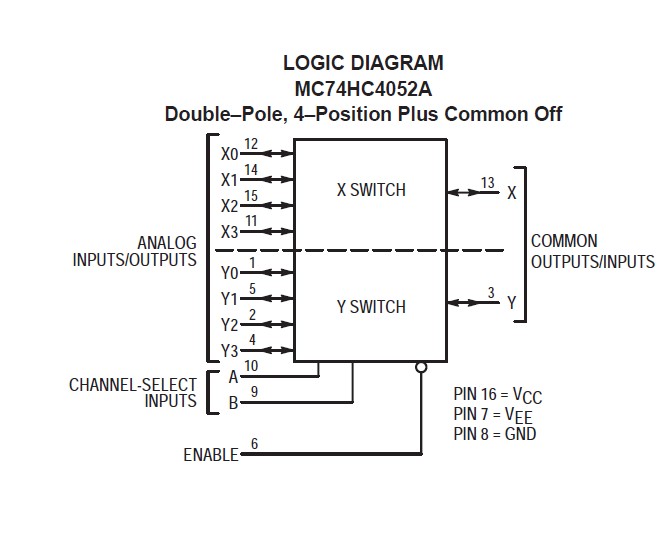

Diagrams
