Product Summary

The mc68ec000fn16r2 is a Microprocessor. It is an economical high-performance embedded controller designed to suit the needs of the cost-sensitive embedded-controller market. The HCMOS mc68ec000fn16r2 has an internal 32 bit architecture that is supported by a statically selectable 8- or 16-bit data bus. This architecture provides a fast and efficient processing device that can satisfy the requirements of sophisticated applications based on high-level languages.

Parametrics

mc68ec000fn16r2 absolute maximum ratings: (1)Supply Voltage:–0.3V to 6.5V; (2)Input Voltage:–0.5V to 6.5V; (3)Maximum Operating Temperature Range: 0℃ to 70℃; (4)Commercial Extended "C" Grade:–40℃ to 85℃; (5)Storage Temperature:–55℃ to 150℃.

Features

mc68ec000fn16r2 features: (1)Sixteen 32-Bit Data and Address Registers; (2)16-Mbyte Direct Addressing Range; (3)Program Counter ; (4)6 Instruction Types; (5)Operations on Five Main Data Types; (6)Memory-Mapped Input/Output (I/O) ; (7)14 Addressing Modes.

Diagrams

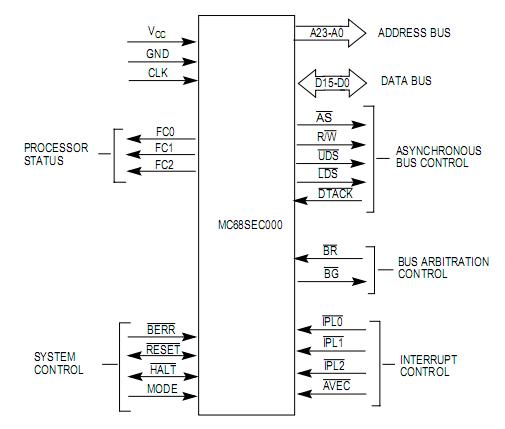

mc68ec000fn16r2 block diagram
