Product Summary
The mc1455p1 is a highly stable controller capable of producing accurate time delays or oscillation. Additional terminals are provided for triggering or resetting if desired. In the time delay mode, time is precisely controlled by one external resistor and capacitor. For astable operation as an oscillator, the free−running frequency and the duty cycle are both accurately controlled with two external resistors and one capacitor. The circuit mc1455p1 may be triggered and reset on falling waveforms, and the output structure can source or sink up to 200 mA or drive MTTL circuits.
Parametrics
mc1455p1 absolute maximum ratings: (1)Power Supply Voltage, VCC: +18 Vdc; (2)Discharge Current (Pin 7), I7: 200 mA; (3)Power Dissipation, PD: 625mW; (4)Operating Temperature Range (Ambient), TA: -40 to +85°C; (5)Maximum Operating Die Junction Temperature, TJ: +150 °C; (6)Storage Temperature Range, Tstg: -65 to +150 °C.
Features
mc1455p1 features: (1)Direct Replacement for NE555 Timers; (2)Timing from Microseconds through Hours; (3)Operates in Both Astable and Monostable Modes; (4)Adjustable Duty Cycle; (5)High Current Output Can Source or Sink 200 mA; (6)Output Can Drive MTTL; (7)Temperature Stability of 0.005% per °C; (8)Normally ON or Normally OFF Output.

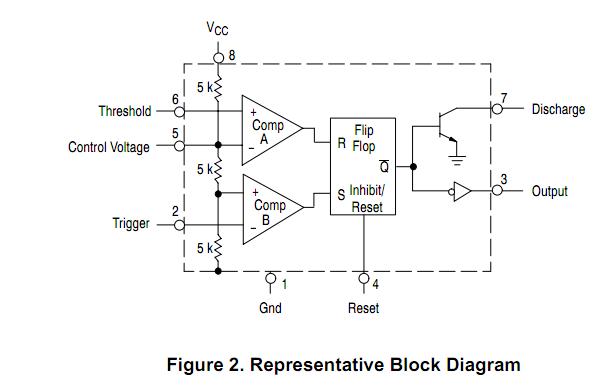

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 MC1455P1 |
ON Semiconductor |
Timers & Support Products ANA TIMING CIRCUIT |
Data Sheet |
Negotiable |
|
||||||||||||
|
MC1455P1G |
ON Semiconductor |
Timers & Support Products ANA TIMING CIRCUIT |
Data Sheet |
|
|
||||||||||||
