Product Summary

The mc145152fn2 is a PLL frequency synthesizer. The MC145152P2 is typically used as low–power, phase–locked loop frequency synthesizers. When combined with an external low–pass filter and voltage–controlled oscillator, the mc145152fn2 can provide all the remaining functions for a PLL frequency synthesizer operating up to the device frequency limit. For higher VCO frequency operation, a down mixer or a prescaler can be used between the VCO and the synthesizer IC. The applications of the mc145152fn2 include CATV, TV Tuning, AM/FM Radios, Scanning Receivers, Two–Way Radios and Amateur Radio.

Parametrics

mc145152fn2 absolute maximum ratings: (1)VDD, DC Supply Voltage: -0.5 to + 10.0 V; (2)Vin, Vout, Input or Output Voltage (DC or Transient) except SW1, SW2: -0.5 to VDD + 0.5 V; (3)Vout, Output Voltage (DC or Transient), SW1, SW2 (Rpull-up = 4.7 kW): -0.5 to + 15 V; (4)Iin, Iout, Input or Output Current (DC or Transient), per Pin: ±10 mA; (5)IDD, ISS, Supply Current, VDD or VSS Pins: ±30 mA; (6)PD, Power Dissipation, per Package: 500 mW; (7)Tstg, Storage Temperature: -65 to + 150℃; (8)TL, Lead Temperature, 1 mm from Case for 10 seconds: 260℃.

Features

mc145152fn2 features: (1)Operating Temperature Range: -40 to 85℃; (2)Low Power Consumption Through Use of CMOS Technology; (3)3.0 to 9.0 V Supply Range; (4)On- or Off-chip Reference Oscillator Operation; (5)Lock Detect Signal; (6)N Counter Output Available; (7)Single Modulus/Parallel Programming; (8)8 User-selectable R Values: 8, 128, 256, 512, 1024, 2048, 2410, 8192; (9)N Range = 3 to 16383; (10)Linearized Digital Phase Detector Enhances Transfer Function Linearity; (11)Two Error Signal Options: Single-Ended (Three-State) or Double-Ended; (12)Chip Complexity: 8000 FETs or 2000 Equivalent Gates.

Diagrams

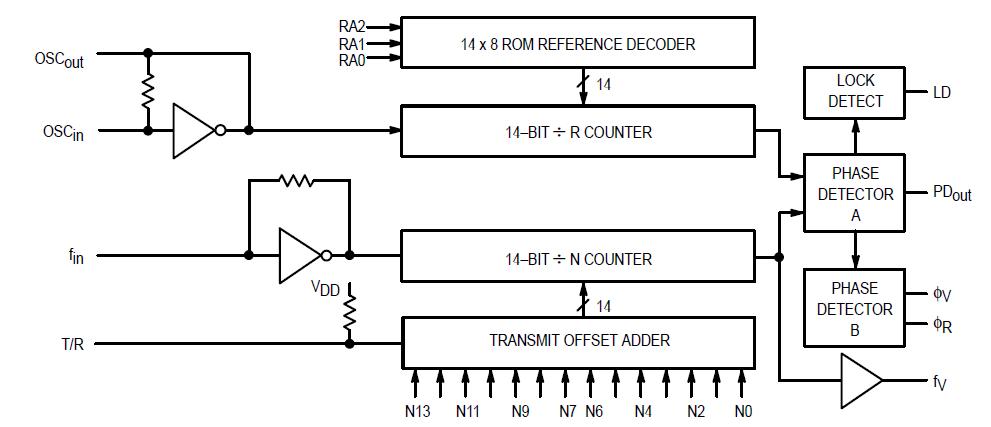

MC145152P2 diagram
