Product Summary

The MC14106BDR2G is a hex Schmitt Trigger constructed with MOS P-channel and N-channel enhancement mode devices in a single monolithic structure. The MC14106BDR2G finds primary use where low power dissipation and/or high noise immunity is desired. The MC14106BDR2G may be used in place of the MC14069UB hex inverter for enhanced noise immunity or to square up slowly changing waveforms.

Parametrics

MC14106BDR2G absolute maximum ratings: (1)DC Supply Voltage Range: -0.5 to +18.0 V; (2)Input or Output Voltage Range(DC or Transient): -0.5 to VDD + 0.5 V; (3)Input or Output Current(DC or Transient) per Pin: ±10 mA; (4)Power Dissipation, per Package(Note 1): 500 mW; (5)Ambient Temperature Range: -55 to +125 ℃; (6)Storage Temperature Range: -65 to +150 ℃; (7)Lead Temperature(8-Second Soldering): 260 ℃.

Features

MC14106BDR2G features: (1)Increased Hysteresis Voltage Over the MC14584B; (2)Supply Voltage Range = 3.0 Vdc to 18 Vdc; (3)Capable of Driving Two Low-power TTL Loads or One Low-power Schottky TTL Load Over the Rated Temperature Range; (4)Pin-for-Pin Replacement for CD40106B and MM74C14; (5)Can Be Used to Replace the MC14584B or MC14069UB; (6)Pb-Free Packages are Available.

Diagrams

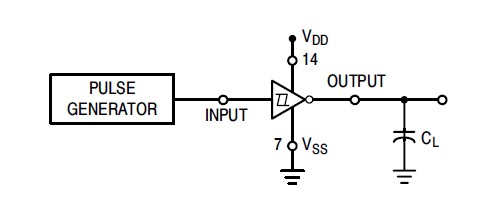

MC14106BDR2G pin connection

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
MC14106BDR2G
MC14106BDR2G

ON Semiconductor

Inverters 3-18V CMOS Hex Schmitt Trigger

Data Sheet

0-1: $0.22
1-25: $0.20
25-100: $0.15
100-500: $0.12
