MC14053BD

MC14053BD, triple SPDT, 10 mA, 18.0 V, 1.0 kHz, SOP

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.13~0.13 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
1 ~ 9004 :	0.13 / Piece

PartNumber:: MC14053BD

Brand:: Motorola, Inc - MOTOROLA | Pack: SOP | D/C: 96+

Availability:: Supply Ability: 100/Month Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Ms. Sukey's store

(China (Mainland))

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-07-07

From Other Seller

Part Number:MC14053BD
US $0.13 - 0.13
Quantity:

piece

Product Summary

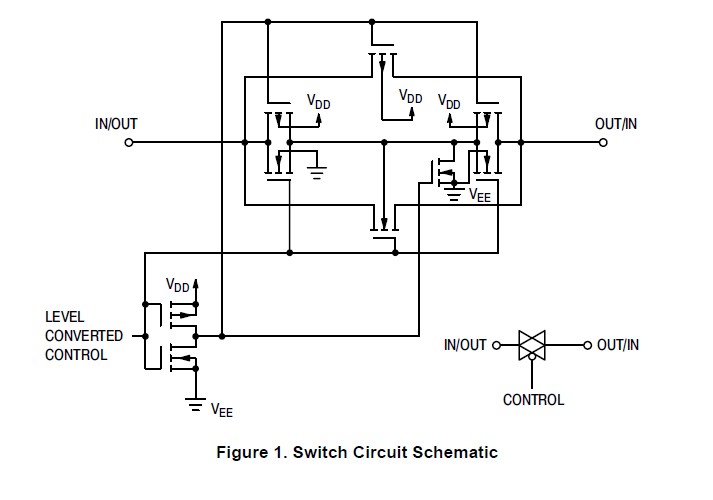

The MC14053BD analog multiplexer is digitally-controlled analog switch. The device is a Triple SPDT. The MC14053BD features low ON impedance and very low OFF leakage current. Control of analog signals up to the complete supply voltage range can be achieved.

Parametrics

MC14053BD maximum ratings: (1)Iin, Input Current (DC or Transient) per Control Pin: +10 mA; (2)ISW, Switch Through Current: ±25 mA; (3)PD, Power Dissipation per Package: 500 mW; (4)TA, Ambient Temperature Range: -55 to +125℃; (5)Tstg, Storage Temperature Range: -65 to +150℃; (6)TL, Lead Temperature: 260℃; (7)VDD DC Supply Voltage Range(Referenced to VEE, VSS . VEE): -0.5 to +18.0V; (8)Vin Input or Output Voltage Range: .0.5 to VDD V.

Features

MC14053BD features: (1)Triple Diode Protection on Control Inputs; (2)Switch Function is Break Before Make; (3)Supply Voltage Range = 3.0 Vdc to 18 Vdc; (4)Analog Voltage Range (VDD - VEE) = 3.0 to 18 V; (5)Note: VEE must be VSS; (6)Linearized Transfer Characteristics; (7)Low-noise - 12 nV//Cycle, f . 1.0 kHz Typical; (8)Pin-for-Pin Replacement for CD4051, CD4052, and CD4053; (9)For 4PDT Switch, See MC14551B; (10)For Lower RON, Use the MC14053BDR2G High-Speed; (11)CMOS Devices; (12)Pb-Free Packages are Available.
