The MB29F080A-90PTN is a surface mount schottky barrier rectifier.
Parametrics
MB29F080A-90PTN absolute maximum ratings: (1)Maximum Recurrent Peak Reverse Voltage: 90 V; (2)Maximum RMS Voltage: 63 V; (3)Maximum DC Blocking Voltage: 90 V; (4)Maximum Average Forward Current (See Fi gure 1): 2.0 A; (5)Peak Forward Surge Current :8.3ms single half sine-wave superimposed on rated load(JEDEC method): 50 A; (6)Maximum Forward Voltage at 2.0A ( Note 1): 0.80 V; (7)Maximum DC Reverse Current TJ =25 ℃ at Rated DC Blocking Voltage TJ =100 ℃: 20 mA; (8)Typical Thermal Resistance ( Note 2): 12 OC / W; (9)Operati ng Juncti on and Storage Temperature Range: -55 to +175 ℃.
Features
MB29F080A-90PTN features: (1)Plastic package has Underwriters Laboratory Flammability Classification 94V-O; (2)For surface mounted applications; (3)Low profile package; (4)Built-in strain relief; (5)Metal to silicon rectifier. majority carrier conduction; (6)Low power loss,high efficiency; (7)High surge capacity; (8)For use in low voltage high frequency inverters, free wheeling, and polarity protection applications; (9)In compliance with EU RoHS 2002/95/EC directives.

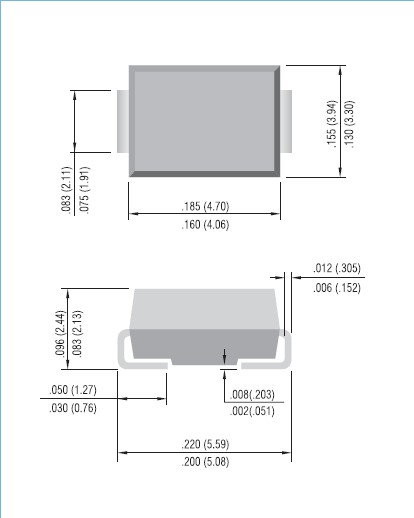

Diagrams
