Product Summary
The mb15e03lpv-g-ef is an input Phase Locked Loop (PLL) frequency synthesizer with a 1.2 GHz prescaler. The mb15e03lpv-g-ef can be selected for the prescaler that enables pulse swallow operation. The latest BiCMOS process technology is used, resuItantly a supply current is limited as low as 2.5 mA typ. This operates with a supply voltage of 3.0 V (typ.) Furthermore, a super charger circuit is included to get a fast tuning as well as low noise performance. As a result of this, the mb15e03lpv-g-ef is ideally suitable for digital mobile communications, such as GSM(Global System for Mobile Communications), PDC(800MHz)(Personal Digital Cellular).
Parametrics
mb15e03lpv-g-ef absolute maximum ratings: (1)Power supply voltage VCC: –0.5 +4.0 V; (2)VP VCC: +6.0 V; (3)Input voltage VI: -0.5 VCC +0.5 V; (4)Output voltage VO: -0.5 VCC +0.5 V; (5)Output current IO: -10 to +10 mA Except D O output; (6)IOd: -25 to +25 mA D O output; (7)Storage temperature Tstg: -55 to +125°C.
Features
mb15e03lpv-g-ef features: (1)High frequency operation: 1.2 GHz max; (2)Low power supply voltage: VCC = 2.7 to 3.6 V; (3)Very Low power supply current : ICC = 2.5 mA typ. (VCC = 3 V); (4)Power saving function : IPS = 0.1 mA typ.; (5)Pulse swallow function: 64/65 or 128/129; (6)Serial input 14-bit programmable reference divider: R = 5 to 16,383; (7)Plastic 16-pin SSOP package (FPT-16P-M05)and 16-pin BCC package (LCC-16P-M02).

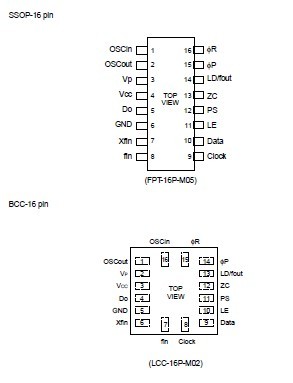

Diagrams
