Product Summary
The MB1501PF is a serial input pll frequency synthesizer.
Parametrics
MB1501PF absolute maximum ratings: (1)Power Supply Voltage VCC: –0.5 to +7.0 V; (2)Power Supply Voltage VP,VPL: VCC to 10.0 V; (3)Output Voltage: –0.5 to VCC +0.5 V; (4)Open-drain Output: –0.5 to 9.0 V; (5)Output Current: ±10 mA; (6)Storage Temperature: –55 to +125 °C.
Features
MB1501PF features: (1)High operating frequency: fIN MAX=1.1GHz (PIN MIN=0.20VP-P); (2)On-chip prescaler; (3)Low power supply voltage: 2.7V to 5.5V (3.0V typ); (4)Low power supply consumption: 45mW (3.0V, 1.1GHz operation); (5)Serial input 18-bit programmable divider consisting of: Binary 7-bit swallow counter (Divide ratio: 0 to 127)Binary 11-bit programmable counter (Divide ratio: 16 to 2047); (6)Serial input 15-bit programmable reference divider consisting of: Binary 14-bit programmable reference counter (Divide ratio: 8 to 16383)1-bit switch counter (SW)Sets divide ratio of prescaler; (7)2types of phase detector output On-chip charge pump (Bipolar type)Output for external charge pump; (8)Wide operating temperature: TA=–40°C to +85°C.

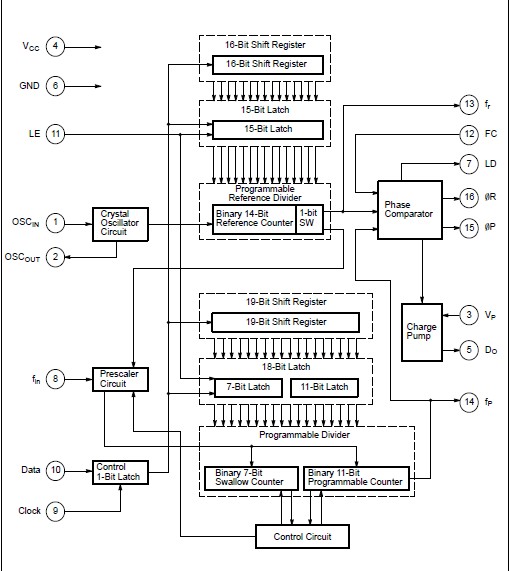

Diagrams
