Product Summary
The m95040-wmn6t is a 4 Kbit (512 x 8) electrically erasable programmable memory (EEPROM), accessed by a high speed SPI-compatible bus. The m95040-wmn6t is accessed by a simple serial interface that is SPI-compatible. The m95040-wmn6t is selected when Chip Select (S) is taken Low. Communications with the device can be interrupted using Hold (HOLD). WRITE instructions are disabled by Write Protect (W).
Parametrics
m95040-wmn6t absolute maximum ratings: (1)Storage Temperature:–65 to 150℃; (2)Output Voltage:–0.50 to VCC+0.6V; (3)Input Voltage:–0.50 to 6.5V; (4)Supply Voltage:–0.50 to 6.5V; (5)Electrostatic Discharge Voltage (Human Body model):–4000 to 4000V.
Features
m95040-wmn6t features: (1)Compatible with SPI Bus Serial Interface (Positive Clock SPI Modes); (2)High Speed:10MHz Clock Rate, 5ms Write Time; (3)Status Register; (4)BYTE and PAGE WRITE (up to 16 Bytes); (5)Self-Timed Programming Cycle; (6)Adjustable Size Read-Only EEPROM Area; (7)Enhanced ESD Protection; (8)More than 1 Million Erase/Write Cycles; (9)More than 40-Year Data Retention.

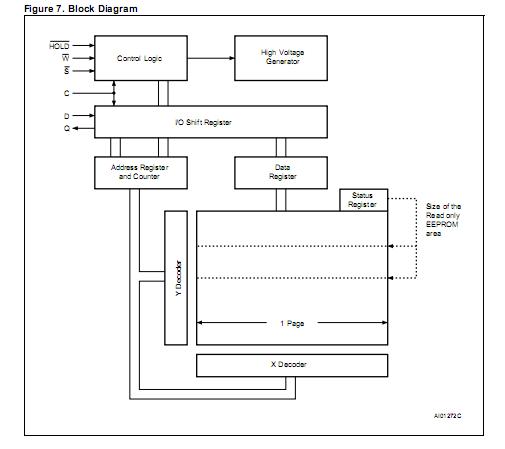

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 M95040-WMN6T |
STMicroelectronics |
EEPROM 5.5V 4K (512x8) |
Data Sheet |
Negotiable |
|
||||||||||||
|
M95040-WMN6TP |
STMicroelectronics |
EEPROM 2.5 V to 5.5V 4K |
Data Sheet |
|
|
||||||||||||
