M63823GP

transistor-array, 50V, 500mA, SOIC

Rated 5 Rating 5 | reviews | Write a review

Price:: US $1.38~1.38 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
1 ~ 2993 :	1.38 / Piece

PartNumber:: M63823GP

Brand:: MITSUBISHI Electronics - MITSUBISHI | Pack: SOIC | D/C: 01+

Availability:: Supply Ability: 100/Month Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Ms. Sukey's store

(China (Mainland))

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-07-03

From Other Seller

Part Number:M63823GP
US $1.38 - 1.38
Quantity:

piece

Product Summary

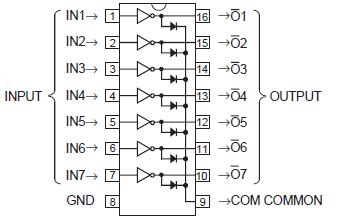

The M63823GP is a 7-unit 500ma darlington transistor-array with clamp diode. The M63823GP is seven-circuit Darlington transistor arrays with clamping diodes. Applications of the M63823GP include: Drives of relays and printers, digit drives of indication elements (LEDs and lamps), and MOS-bipolar logic IC interfaces.

Parametrics

M63823GP absolute maximum ratings: (1) Collector-emitter voltage: –0.5V to +50V; (2) Collector current: 500mA; (3) Input voltage: –0.5V to +30V; (4) Clamping diode forward current: 500mA; (5) Clamping diode reverse voltage: 50V; (6) Power dissipation: 1.47(P)/1.00(FP)/0.80(GP) W; (7) Operating temperature: –40°C to +85°C; (8) Storage temperature: –55°C to +125°C.

Features

M63823GP features: (1) Three package configurations (P, FP and GP); (2) Pin connection Compatible with M54523P and M54523FP; (3) High breakdown voltage (BVCEO≥50V) ; (4) High-current driving (IC(max) = 500mA); (5) With clamping diodes; (6) PMOS Compatible input; (7) Wide operating temperature range (Ta = –40 to +85°C).
